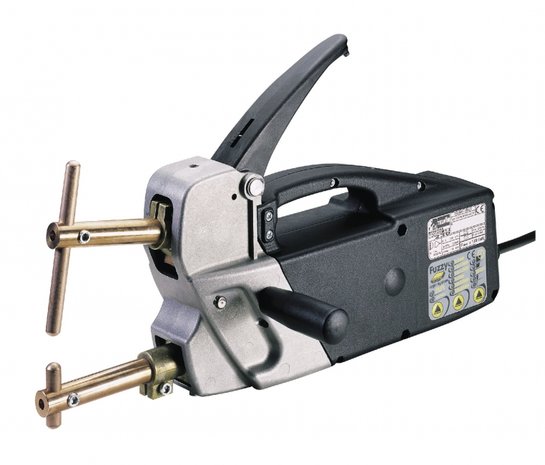

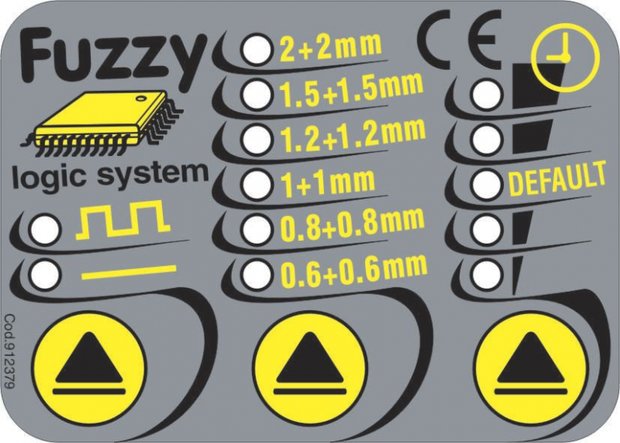

Portable spot welding machines, controlled by microprocessor. Control system "FUZZY LOGIC" for easier use and superior quality. Designed for spot welding of sheet material having a maximum thickness of 2 + 2 mm. Main features: Automatic control of the welding time and welding current. Welding arrangement. Choice between continuous / pulse operation (for sheet metal with high-stress rekpunten and galvanized steel). Press the arms adjustable from 40 to 120kg. Handle thermally insulating. Standard supplied arms L. 120mm.
Voltage v 230
Power factor cos fi 0,9
Protection class IP 20
Maximum puntlasstroom a 6300
Maximum puntlasdikte mm + 2.0 mm + 2.0
Secondary circuit voltage v 2.5
Suitable for steel
Suitable for stainless steel
Suitable for aluminum
Maximum duty cycle (EN60974-1, at 40 °) 1.5%
Maximum power consumption kw 13
Fuse on the grid to 25
Insulation class b
Weight 10.50 kg
Dimensions (L x W x H) mm 440x100x185
