Transport Roller Set 20 Ton – 4 Rollers with Handle

Transport Roller Set 20 Ton – 4 Rollers with Handle
Complete 20-ton transport roller set for moving heavy loads.
Ideal for heavy machinery, non-wheeled structures, crates, and more.
Specifications:
Total capacity: 20 tons
Roller dimensions: 50 x 18 mm
Number of rollers: 56
Material: Steel rollers
Anti-slip rubber layer dimensions: 120 x 120–130 mm
Inner axle diameter: 8 mm

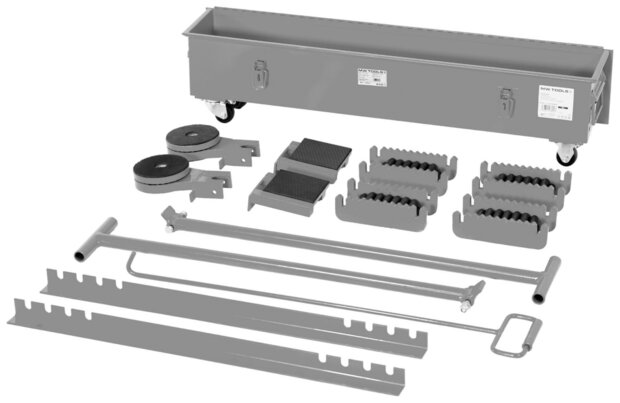

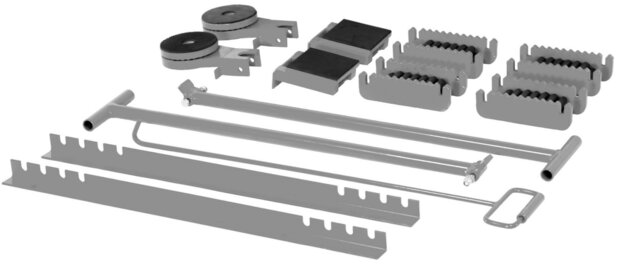

Includes:

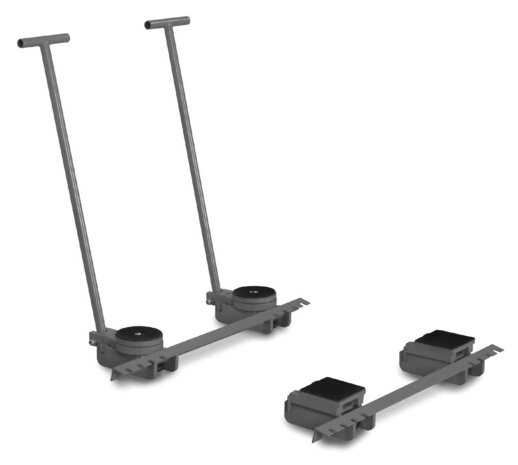

2 rotating round support plates
2 fixed support plates
2 connecting rods
2 steering handles for guiding or pulling the load

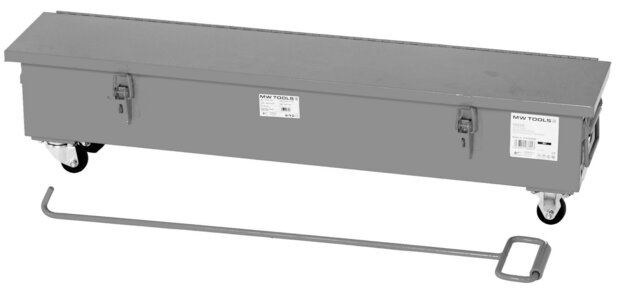

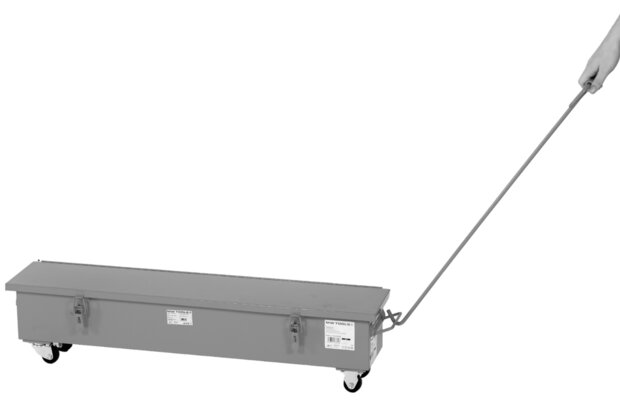

1 metal storage case with wheels, handles, and towing bar
Customizable Roller System:
Build your own transport roller set tailored to the load being moved.
The various types are distinguished by the wheels (fixed or rotating), steering handle (with or without), and support plate (fixed or rotating). All types can be combined:
Single transport rollers with fixed platform – Available in 3 ton and 6 ton
Roller sets (2 supports) with fixed platform and rods – Available in 6 ton and 12 ton
Transport rollers with steering handle and rotating platform – For directional control, available in 3 ton, 6 ton, and 12 ton
Transport rollers with steering handle and 360° rotating wheels – For free movement in any direction, available in 2 ton and 4 ton
Complete transport roller set with 4 supports and steering handles – 20 ton capacity
Optional Lifting Tools (for raising the load):
Lifting bars – For lifting the load using leverage. A basic tool for prying under the base of the load to position a machine jack.
Available in 1.5 ton and 5 ton
Low-profile machine jacks – Available in 3 ton, 8 ton, 10 ton, and 20 ton
Machine jacks with 360° rotating base and low minimum height – Available in 5 ton and 10 ton
Forklift extension forks:
1830 mm (L) x 125 mm (W)
1830 mm (L) x 150 mm (W)
2435 mm (L) x 150 mm (W)
Dimensions & Weight:
Capacity: 20 tons
Material: Steel
Length: 1000 mm
Width: 180 mm
Height: 160 mm
Weight: 50.00 kg
