2 ton trolley with chain drive for hoists

2 ton trolley with chain drive for hoists Manual trolley 2 tons with chain drive, for chain hoists and cable hoists. Characteristics: Capacity 2 tons Beam width: 88-146mm Model with chain 3...

Item number

: T2g-TV 57585925257

€ 185,73 *

€ 166,05 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

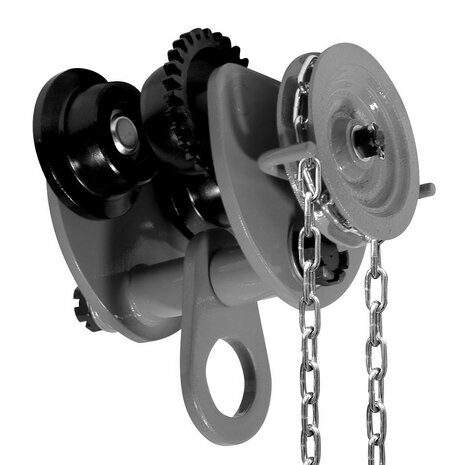

2 ton trolley with chain drive for hoists
Manual trolley 2 tons with chain drive, for chain hoists and cable hoists.
Characteristics:
Capacity 2 tons
Beam width: 88-146mm
Model with chain 3 meters for moving the trolley
The trolley and tackle remain fixed if the chain is not operated
Eye with diameter 52mm
Compatible with beam width 90 – 135 mm, the width is adjustable to the beam profile.
Suitable for IPE, IPN, HEA, HEB, ...
Wheel diameter 70/102
Optional taps:
Gantry crane 2 tons (729840065). Suitable for mobile use for lifting pallets, forklifts, near machines, etc
Portal crane 2 tons extra high and extra wide (729840057). Suitable for mobile use for lifting pallets, forklifts, near machines, etc.
Nominal capacity    t    2
Min. radius in case of curved rail    m    1.1
Wheel diameter    mm    70

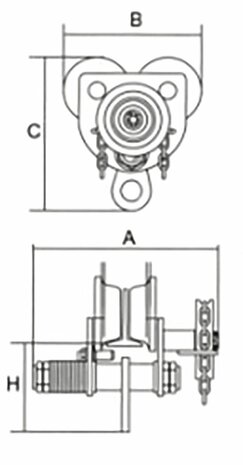

Dimensions
Slot depth    mm    262
D    mm    125
Beam width (M)    mm    88 - 146
Weight    kg    13.50
Dimensions (l x b x h)    mm    290.5x240x262
