Automatic reel for electric cable 14 m - 3g 1.5 mm³
Automatic reel for electric cable 14 m - 3g 1.5 mm³
Automatic reel for electric cable 14 m - 3g 1.5 mm³ 3G 1,5 mm² cable reel with PVC cable and 230 V sockets Characteristics : Shockproof synthetic case Flexible PVC cable H05VVF with 3...

Item number

T2g-TV 07562050307

€ 254,10 *
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

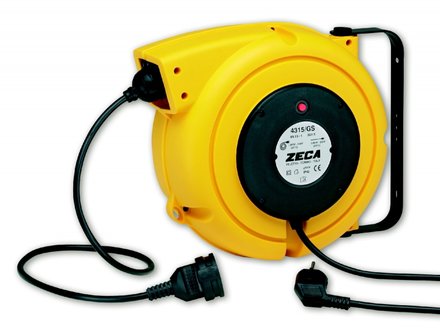

Automatic reel for electric cable 14 m - 3g 1.5 mm³
3G 1,5 mm² cable reel with PVC cable and 230 V sockets
Characteristics :
Shockproof synthetic case
Flexible PVC cable H05VVF with 3 wires (3G 1,5mm²)
Rolls up and unfolds by click mechanism
With cable guide
The click mechanism can be dismantled if constant feedback is required (eg in engineering)
Swivels 80 ° left-right
CE compliant and IP42 protection class
Copper slip ring
Operating temperature from -5 to +50 ° C
Grounding with double contact
With thermal protection
Supplied with plugs with grounding pin
With single plug
Voltage    V    230
Maximum voltage    V    500
Cable length    m    14
Cable type        H05VV-F
Number of conductors        3G
Conductors section    mm²    1,5
Connection cable lenght    m    1
Authorized power rolled    W    1200
Authorized power unrolled    W    1800
IP        42
Operating temperature    °C    -5 / +50
speedcontrol        Has the characteristic
Weight    kg    4,95
Dimensions (b x d x h)    mm    360x185x310
