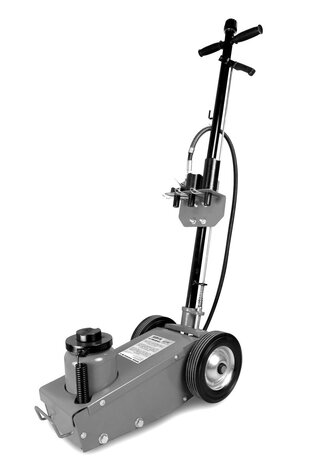

Hydro-pneumatic garage jack 35ton

Hydro-pneumatic garage jack 35ton
This air hydraulic jack is suitable for jacking heavy vehicles such as buses, trucks, agricultural vehicles, construction equipment, cranes, etc., using compressed air.
Characteristics:
Lifting capacity 35 tons
Works on compressed air, the connection is at the bottom of the base
1-stage floor jack
Minimum height of 250 mm (with the standard extension A)
Maximum height up to 575 mm (with highest extension D and screw at maximum position)
Cylinder with a stroke of 130 mm
Cylinder head with adjustable screw, with a reach of 115mm
The cylinder head is used with one of the 4 supplied extensions, tailored to the desired lifting range
Length of the 4 extensions: standard extension A: 60mm (ø63mm), B: 60mm (ø 48mm), C: 100mm (ø 48mm) and D: 140mm (ø 48mm)
Long lever with 3 positions. The handle can be set completely flat so that the jack can easily be placed halfway under the axle of the vehicle
2 large rubber coated wheels, for good maneuverability and easy transport. Also suitable for rough surfaces such as gravel, roadsides, etc.
Spring set for return of the cylinder without load
CE compliant
Lifting range:
with standard extension A: 250-495mm
With extension B: 250-495mm
With extension C: 290-535mm
With extension D: 330-575mm
Working pressure    bar    8
Number of stairs        1
Height maximum    mm    490
Lifting height    mm    130
Quicklift pedal        Does not have the feature
Compressed air        Owns the property
Capacity    t    35
Weight    kg    46.00

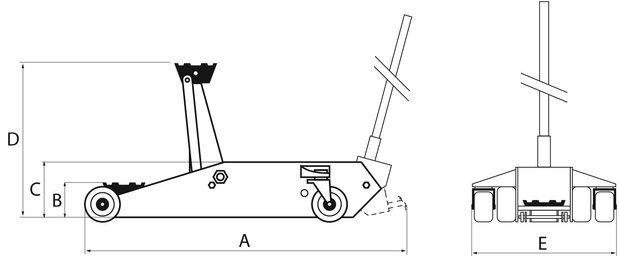

Dimensions (l x b x h)    mm    660x380x240
