Construction crane 500kg 25m electric 230V 360° rotation

Construction crane 500kg 25m electric 230V 360° rotation

Construction crane 500kg 25m electric 230V 360° rotation Robust 360° rotating crane with large reach for use on construction sites, workshops, on roofs, scaffolding, attics, loading...

Item number

: T2g-OK 20736

€ 1.573,50 *

€ 1.150,00 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

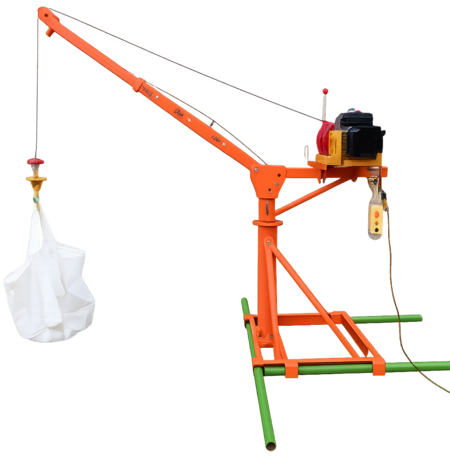

Construction crane 500kg 25m electric 230V 360° rotation

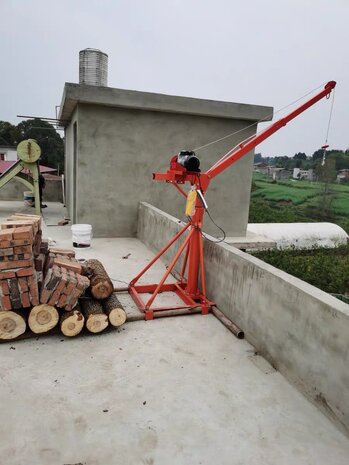

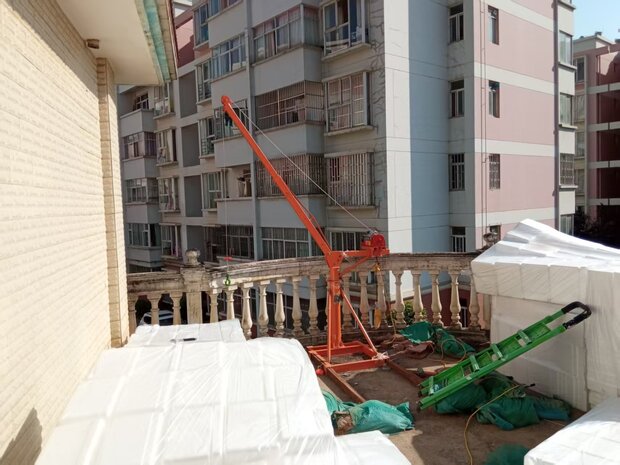

Robust 360° rotating crane with large reach for use on construction sites, workshops, on roofs, scaffolding, attics, loading docks, etc.
Easy and quick to assemble: The crane can be completely disassembled, so that it can be transported compactly and quickly reassembled
360° rotatable arm with large and far lifting range
500kg lifting capacity

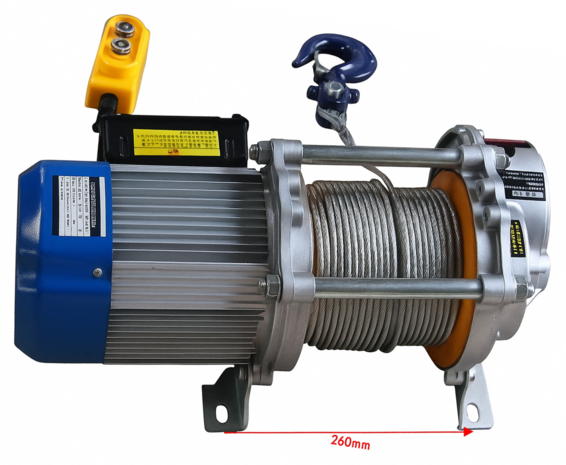

Winch with 25 m steel cable
230V electric motor, can be used anywhere
Telescopic lifting arm with 3 capacities: 150kg / 250kg / 500kg

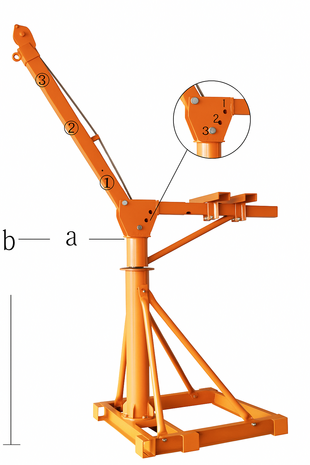

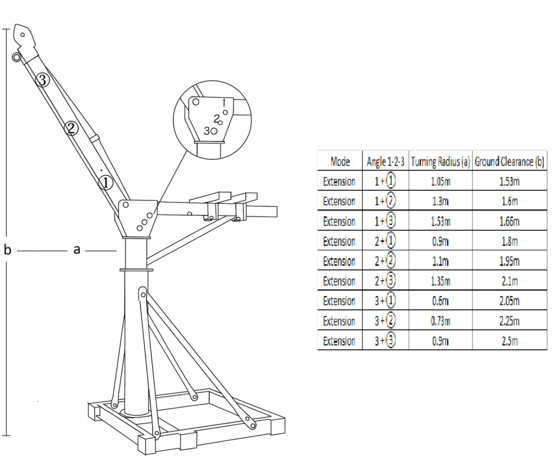

Iode	Angle 1-2-3	Turning Radius (a)	Ground Clearance (b)
Extension	1 + ①	1.05m	1.53m
Extension	1 + ②	1.3m	1.6m
Extension	1 + ③	1.53m	1.66m
Extension	2 + ①	0.9m	1.8m
Extension	2 + ②	1.1m	1.95m
Extension	2 + ③	1.35m	2.1m
Extension	3 + ①	0.6m	2.05m
Extension	3 + ②	0.73m	2.25m
Extension	3 + ③	0.9m	2.5m

The lifting arm has a free 360° rotation movement and can be operated intuitively via the handle and locked in 2 positions
Heavy and generously sized steel base column ensures safe turning movement in any direction
Electromagnetic brake on the motor
IP20

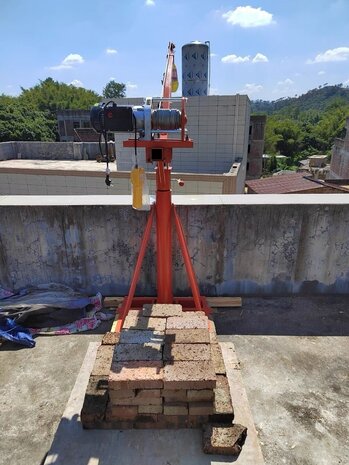

The base and tubes are weighted with sandbags, concrete blocks or other weights (not included)
This product is supplied in transport packaging and must be assembled before use.
Assembly takes approximately 1 hour with 2 people. Auxiliary equipment for lifting and supporting is recommended.

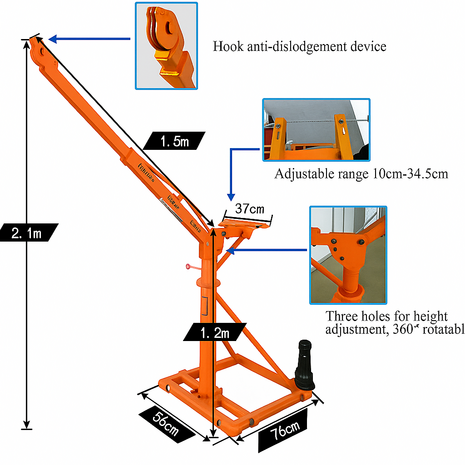

Minimum height m 1.2
Height maximum m 2.1
Capacity kg 500
Weight kg 173.00
Dimensions (l x b x h) mm 1,700x400x2,500
