Electric tapping machine M6 to M18

Electric tapping machine M6 to M18 Electric tapping machine with reversing device for time-saving, accurate tapping of threads in drilled holes. Features: Easy tapping in a single step, thanks...

Item number

: T2g-TV 87138600187

€ 783,69 *

€ 679,89 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

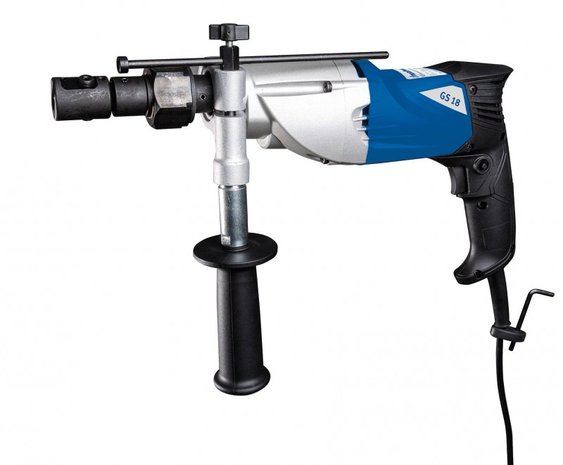

Electric tapping machine M6 to M18
Electric tapping machine with reversing device for time-saving, accurate tapping of threads in drilled holes.
Features:
Easy tapping in a single step, thanks to high torque, low speed and excellent concentric precision.

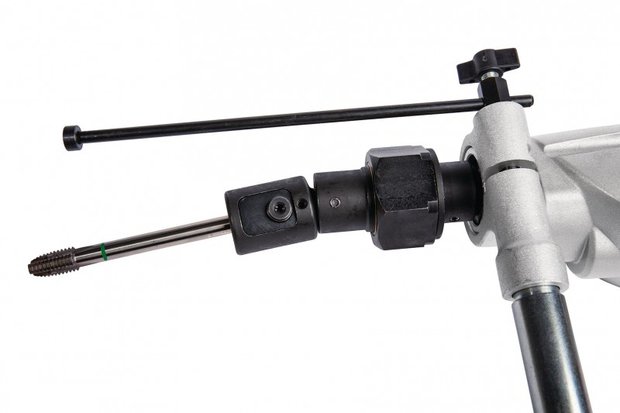

Flexible tapping head
Automatic reversal by pushbutton
Additional handle ensures optimal and comfortable operation
Equipped with deepstop function for blind holes
Suitable for:
Tapping of continuous and blind holes
Machine steps from M6 to M18
Delivered with:

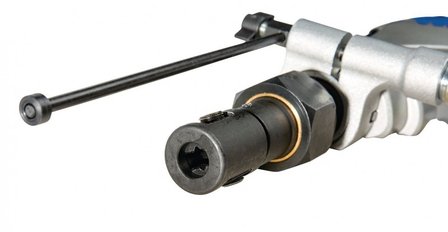

Universal stud holder M6 to M18 with slipping clutch
Additional handle
Allen wrench 4 mm
Depth stop
Solid storage case
Tapping range M6 - M18
Trunnion capacity steel S235JR short term M18
Tensioning capacity steel S235JR continuous M14
Trunnion capacity aluminium short term M18
Aluminium continuous feeding capacity M16
Speed right unloaded rpm 280
Speed left unloaded rpm 680
Speed right loaded rpm 170
Power kW 410
Cable length m 3
Voltage V 220 - 240
Weight kg 3,15
