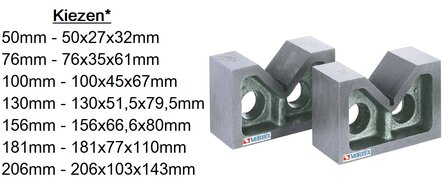

Cast iron v-block set

Cast iron v-block set Strengths: These V-blocks are precision machined in pairs and made of neudular cast iron V-angle is 90 degrees Parallel to the base and the squareness parallelism is 0.003...

Item number

: T2g-TV 37900006037

€ 29,94 *

Choose* 790000603: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Cast iron v-block set
Strengths:
These V-blocks are precision machined in pairs and made of neudular cast iron
V-angle is 90 degrees
Parallel to the base and the squareness parallelism is 0.003 mm maximum
Material: high quality fine-grained cast iron, stress-free
Accuracy: machined to 0.05 mm / 100 mm
Supplied per:
Pair

Lengte mm	Breedte mm	Hoogte mm	Breedte v-groef mm	Diepte v-groef mm	Gewicht kg	Afmetingen (l x b x h) mm
50	27	32	25	12,5	0,40	50x27x32
76	35	61	44	22	1,50	76x35x61
100	45	67	53	26,5	2,50	100x45x67
130	51,5	79,5	64	32	4,30	130x51,5x79,5
156	66	90,5	81	40,5	6,40	156x66,6x80
181	77	110	85,4	42,7	12	181x77x110
206	103	143	116	58	16,70	206x103x143
