Simple indexing spacer 338mm

Simple indexing spacer 338mm Horizontal and vertical simple indexing spacer with pre-assembled 3-jaw chuck and masking plates. Advantages: Simple indexing spacer made out of quality meehanite cast...

Item number

: T2g-TV 57900000357

€ 5.247,25 *

€ 4.552,25 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

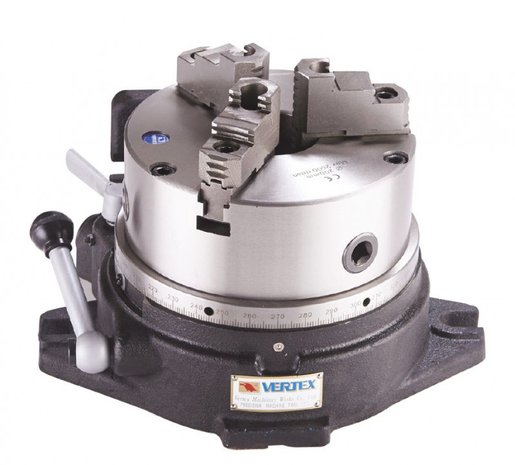

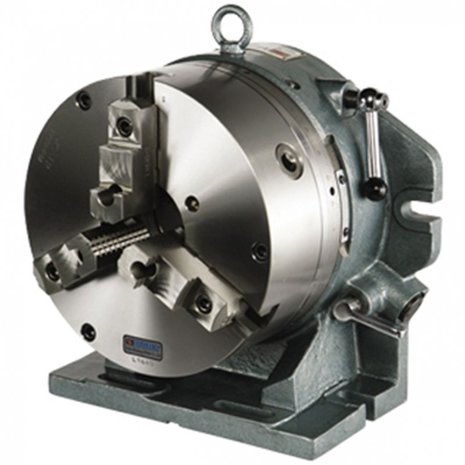

Simple indexing spacer 338mm
Horizontal and vertical simple indexing spacer with pre-assembled 3-jaw chuck and masking plates.
Advantages:
Simple indexing spacer made out of quality meehanite cast iron
With large spindle bore allowing to put large and long parts
Horizontal and vertical use
Precision tapered bearings
Guaranteed stability, even in intensive use
360° graduated scale
Direct division by masking plates
Division possible in 24 positions (by 15°)
Delivered with:
6 dividing trays for 2 - 3 - 4 - 6 - 8 - 12 divisions
3-jaw concentric chuck with hard jaws model VSK

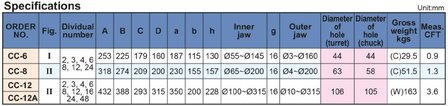

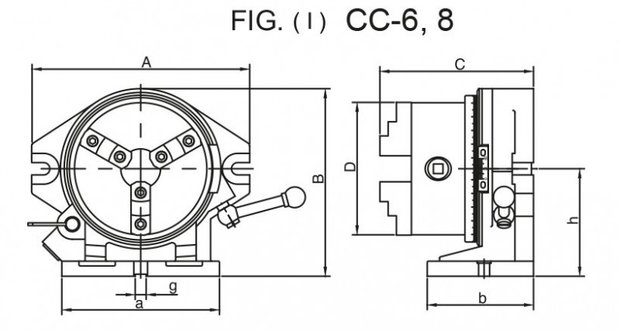

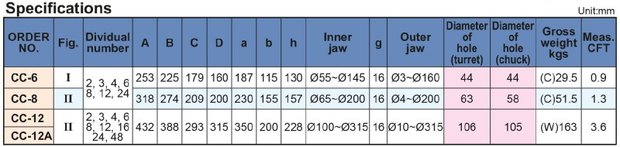

Construction height mm 388
Width mm 293
Length mm 432
Center height mm 228
Pass-through mm 105
Chuck mm 315
Weight kg 163,00
