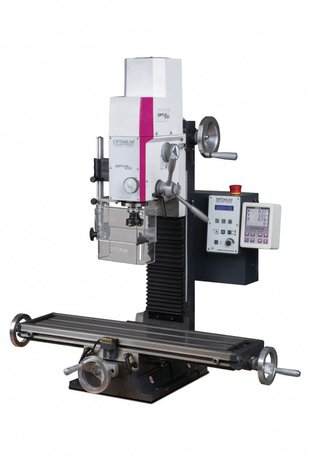

Drilling milling machine dro 480x170x370 mm
Robust drilling-milling machine with electronic adjustment, digital display of the speed and 3 axes DRO5.
Advantages:
BT20 spindle connection
With variable speed through potentiometer
Easy mechanical tool change with rocker arm
With digital display of spindle speeds and drilling depth
Adjustable drilling / milling head at +/- 90° angle

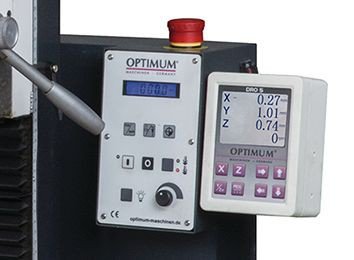

With digital DRO5 reading on the 3 axes
User-friendly control panel

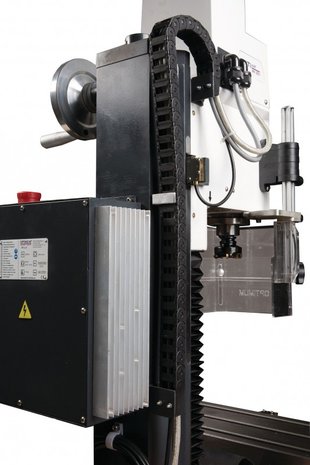

Cables guided in a gutter from the drilling head to the column
Fully assembled machine
Characteristics:
Extremely stable milling head
Precise finish
Integrated lighting
Mechanical quick clamping system for tool holders with pull studs BT20x45°
All guides are ground and scraped by hand (oil recovery for lubrication)
The shafts are equipped with two rows of angular contact bearings, adjustable without play.
Can rotate left / right
Sturdy dovetail construction with adjustable gibs on 3 axes
Powerful and quiet motor of 950 Watts. DC motor with permanent speed control
Solid and precision ground cross table with T-slots and coolant edge
Protection bellows for the Z axis
User-friendly control panel, just touch with your finger to activate the touch function
Separate electrical cabinet well organized
Safeties:

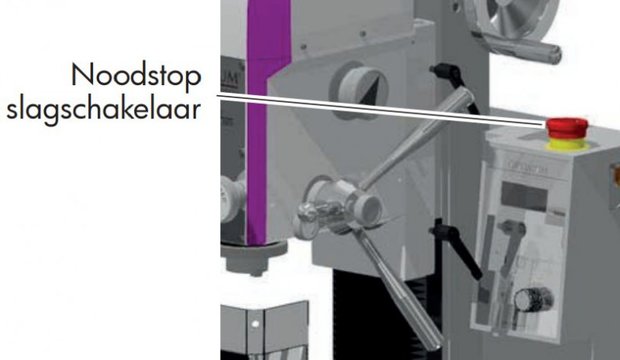

Easy-to-use control buttons, with separate start, stop and emergency stop buttons
24V electric safety components
EMC filter class B (Use in private)
Reliable double-window chuck protection with safety switch
Lockable main switch
Comes standard with:
Service Keys
User manual in English, descriptive data, CE marking and CE certificate according to Machine Directive 2006/42/EC and EMC Directive 2014/30/EC.
Voltage V 1x230 -50/60Hz
Power motor kW 0.95
Drilling capacity in steel S235JR mm 20
Continuous drilling capacity S235JR mm 16
Maximum surfacing capacity mm 52
Maximum capacity twist drill mm 12

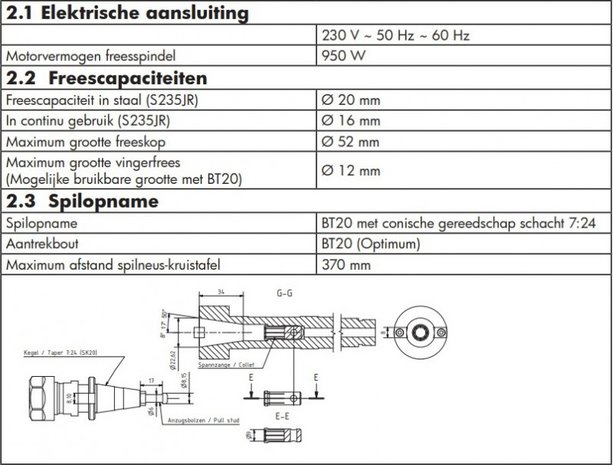

Spindle seat BT20

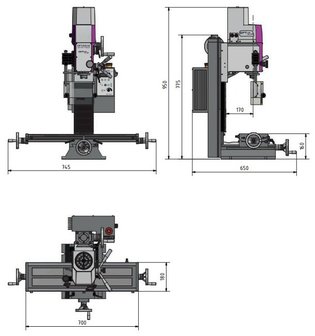

Throat mm 170
Drilling depth mm 50
Swiveling head ° +/-90

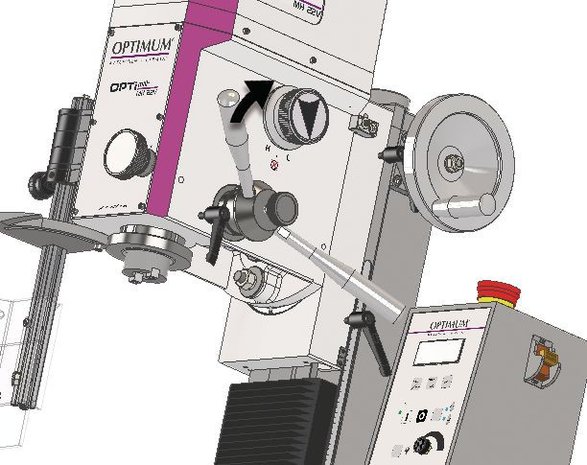

Number of speeds 2 steps, variable
Spindle speed min-1 90-3000
Travel X-axis mm 480
Travel Y axis mm 175
Travel Z axis mm 270

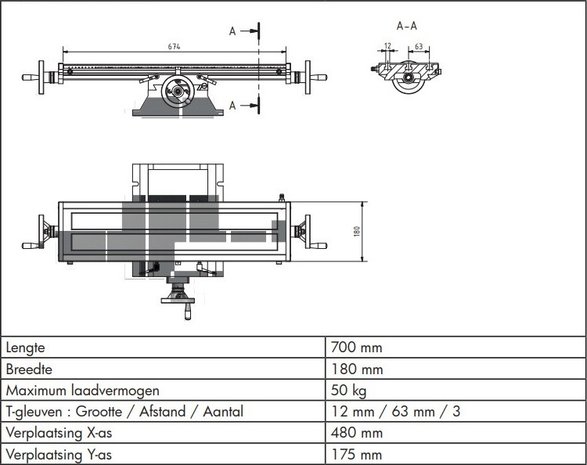

Dimensions table (w x d) mm 700x180
Dimensions T-grooves/distance mm 12/63/3
Weight kg 116,00
