Self-centering 4-claws machining

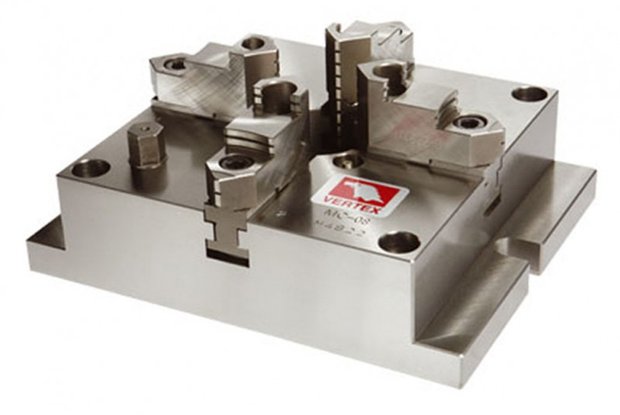

Vertex self-centering chucks with 4 claws.
Features:
The workpiece is firmly clamped by the profiled jaws, which ensures a higher accuracy.
Due to the low headroom, even large workpieces can be clamped securely.
Long workpieces can be clamped in the chuck bore
Possibility of clamping square workpieces when using the chuck as a two chuck
The fixed jaw (optional) is necessary
The key is mounted on the front side, so that it does not interfere with the chuck.
Suitable for:
Drilling machines
Milling machines
CNC machines
Delivered with:
Dust cap
Number of claws: 4
Type: Zelfcentrerend
Connection: T-gleuf
Material: Gietijzer
Accuracy: 0.03mm

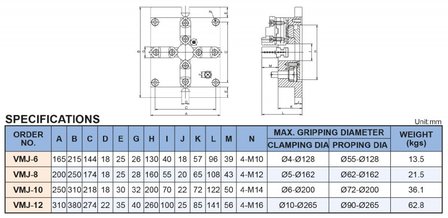

Diameter:
- 165mm (13.50kg)
- 200mm (21.50kg)
