Name: Self-centering 4-claws machining
Brand: VERTEX
Price: 2652.75 EUR
Availability: InStock

Customers reviews

Products

Self-centering 4-claws machining

Self-centering 4-claws machining Vertex self-centering chucks with 4 claws. Features: The workpiece is firmly clamped by the profiled jaws, which ensures a higher accuracy. Due to the low...

Item number

: T2g-TV 97900148397

€ 3.057,75 *

€ 2.652,75 *

Zelfcentrerende 4-klauwplaten machinale bewerkingen 250-310mm: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

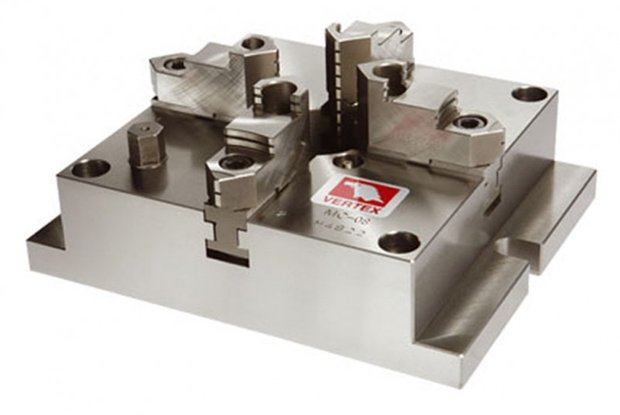

Self-centering 4-claws machining
Vertex self-centering chucks with 4 claws.
Features:
The workpiece is firmly clamped by the profiled jaws, which ensures a higher accuracy.
Due to the low headroom, even large workpieces can be clamped securely.
Long workpieces can be clamped in the chuck bore
Possibility of clamping square workpieces when using the chuck as a two chuck
The fixed jaw (optional) is necessary
The key is mounted on the front side, so that it does not interfere with the chuck.
Suitable for:
Drilling machines
Milling machines
CNC machines
Delivered with:
Dust cap

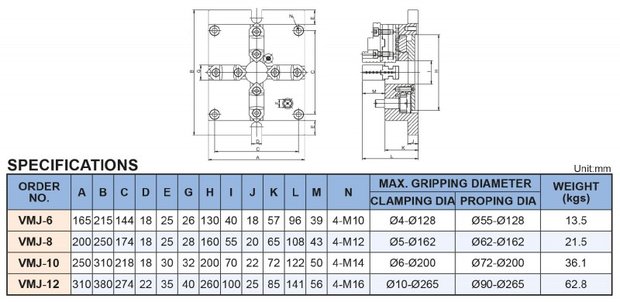

Number of claws: 4
Type: Zelfcentrerend
Connection: T-gleuf
Material: Gietijzer
Accuracy: 0.03mm
Diameter:
- 250mm (36kg)
- 310mm (61,70kg)
