Drilling milling machine MB4P -515kg

Drilling milling machine MB4P -515kg

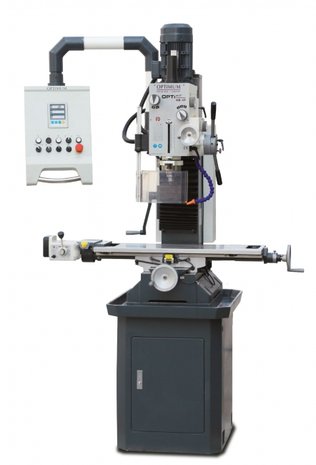

Universal drilling-milling machine with position display and machine base made of cast iron.
MB 4PV with speed adjustable drive
Very smooth running due to ground oil-quenched gear wheels
Two-stage quality electrical motor (MB 4P)
One-stage quality electrical motor (MB 4PV)
Automatic spindle sleeve feed with manual fine feed

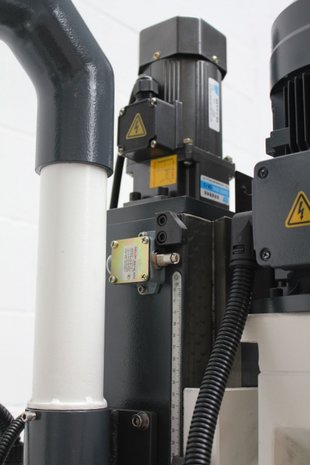

Motor positioning to the Z axis

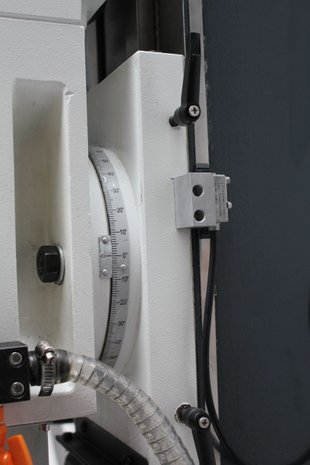

Gear head slewable by ± 60°
Drilling / Thread cutting function
Equipment details
Safety screen
Height-adjustable
Largely dimensioned
Micro switch
X axis

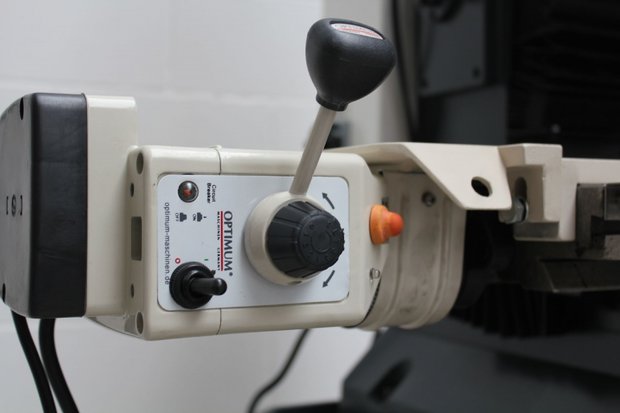

With motor driven table feed as standard
Infinitely variable speed control
Rapid feed
Right-hand/left-hand rotation
Cross table
Massive, accurate and largely dimensioned
Precisely machined surface
Including T-slots
Adjustable V-ledges
Incorporated length measurement scale
Adjustable limit stops

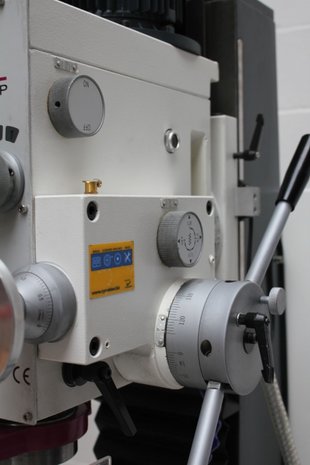

Spindle sleeve feed
Automatic
Spindle sleeve fine feed
Handwheel
Easy-to-operate

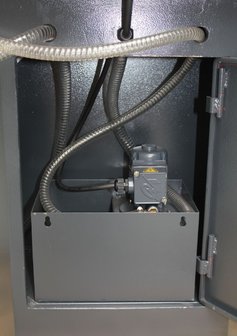

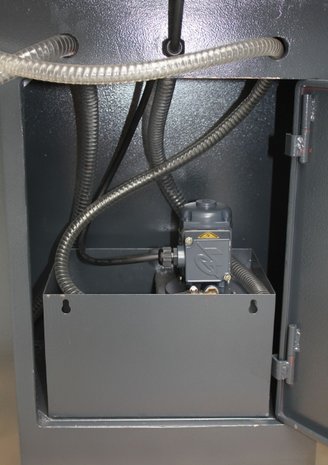

Coolant equipment
Column
Massive dovetail guide
Manually scraped
Highest stability
Largest possible precision
Machine base
Massive cast pillar
Chip tray

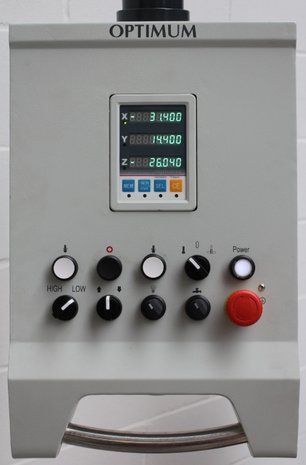

OPTIOperating panel
With integrated control panel to control:
Z axis height adjustment
Operating mode milling/threading
Step switch drive
Spindle rotation
Machine luminaire
Cooling pump
Emergency-stop push button

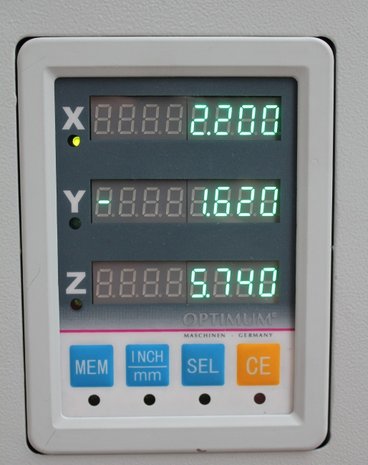

Integrated, compact, digital 3-axis positioning display DRO (X - Y - Z) with user-friendly menu guidance and three- or four-row five-segment display
MB 4P
with DRO 3
MB 4PV
with DRO 5 incl. speed display
The milling machine (frequency converter) MB 4PV corresponds to the standard
DIN EN 55011: 2011-04 class C2 - (only use in mixed and industrial areas)
Voltage V 3x400
Power motor kW 1,1/1,5
Drilling capacity in steel S235JR mm 32
Continuous drilling capacity S235JR mm 28
Maximum surfacing capacity mm 63
Maximum capacity twist drill mm 28
Spindle seat MK 4/M16
Throat mm 280
Drilling depth mm 120
Swiveling head ° +/-60
Number of speeds 2x6
Spindle speed min-1 95-3200
Travel X axis automatic mm 560
Travel Y axis mm 230
Travel Z axis mm 350
Dimensions table (w x d) mm 800x240
Dimensions T-grooves/distance mm 14/80/3
Weight kg 515,00
Dimensions (b x d x h) mm 1.000x1.300x2.220
