Air hydraulic Jack mobile 40 / 80 t

Air hydraulic Jack mobile 40 / 80 t short compact design, therefore easy to maneuver hydraulic system supported by compressed air for easy lifting large support surface for safe standing...

Item number

: T2g-B 74288

€ 1.160,61 *

€ 996,44 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

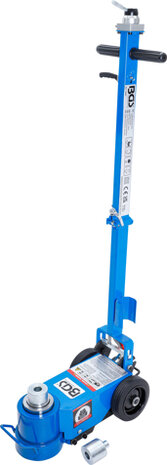

Air hydraulic Jack mobile 40 / 80 t
short compact design, therefore easy to maneuver
hydraulic system supported by compressed air for easy lifting
large support surface for safe standing
2-steps
suitable for commercial vehicles, tractors, agricultural machinery as well as larger construction machines and construction vehicles
overload protection by overload pressure valve

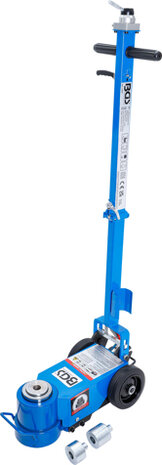

maximum lifting height is achieved by the two adapters included in delivery
diameter plate: 127 mm
ground clearance: 205 mm
rear width: 280 mm
width in front: 200 mm
length lever: 1310 mm
diameter handle: 50 x 30.5 mm
height of adapters: 40, 60 mm
cylinder diameter: 165 mm
air requirement: 35 - 40 l/min
Technical data
Length   610 mm
Gross weight   38200 g
Rated load capacity   40 | 80 t
Lifting height   180 mm
Min. height   205 mm
Max. height   385 mm
Working pressure   8 - 12 bar
Wheel diameter   155 mm
