Chain trolley 0,5 tonne 2,5 meter operating height Suitable for most I- and H-beams, adjustable by adjusting shims, deflection protection brackets serve as fall, break and impact protection.In...

Item number

: T2g-HD 785370

€ 179,56 *

€ 162,56 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

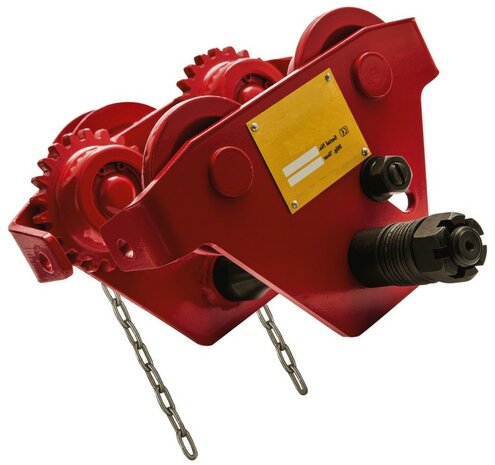

Chain trolley 0,5 tonne 2,5 meter operating height
Suitable for most I- and H-beams, adjustable by adjusting shims, deflection protection brackets serve as fall, break and impact protection.In addition, equipped with tilt protection, permanently lubricated, ball bearing wheels ensure smooth movement, standard with hand chain for 3 meters working height, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate,CE declaration of conformity and operating instructions.
Capacity - 0,5 ton
Test load - 0,625 ton
Suitable beam width - 68-305mm
Min. radius - 0,6m
Wheel diameter - 55mm
Net weight - 9.8kg
Operating temperature -10°C - +60°C
Load type - Only for goods, not suitable for lifting people
