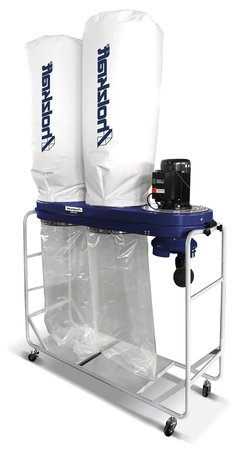

Chip extractor 3.8kw 3x400V

Chip extractor 3.8kw 3x400V Mobile chip extractor for 1 to 4 woodworking machines. Features: With a chip extractor, you will make woodworking machines perform better, and provide a safe, healthy...

Item number

: T2g-TV 37151284337

€ 1.327,29 *

€ 1.151,49 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Chip extractor 3.8kw 3x400V
Mobile chip extractor for 1 to 4 woodworking machines.
Features:
With a chip extractor, you will make woodworking machines perform better, and provide a safe, healthy and pleasant working environment
4 swivel wheels, moves easily in small workshops
The suction nozzle and motor can be tilted 180°, so that the machine can also be connected to pipes from above
Fan casing and frame made of sheet steel
Fan screw made of metal, in blade shape for increased suction power
Reduced dust content due to double woven filter bag cat G1
Quick-release fastener for filter bag and chip bag
Supplied with:
1 filter bag 5 Micron, 1 chip bag PVC
Optional:
Fine filter cartridge standard 510 x 610 mm (ref. 715129990)
Fine filter cartridge large 510 x 1220 mm (ref. 75129991)
Voltage V 3 x 400
Power kW 3.8
Connection to unit mm 4 x ø 100
Maximum volume flow m³/h 4300
Maximum vacuum PA 2000
Filter surface m² 4.8
Chip bag volume l 430
Noise level dB(A) 89.9
Connection hose mm diameter 203
Weight kg 69.00
Dimensions (l x w x h) mm 1.700x600x2.400
