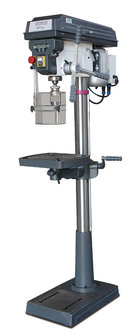

Column drilling machine diameter 25 mm 670x355x1.640mm
Column drilling machine diameter 25 mm 670x355x1.640mm
Column drilling machine diameter 25 mm 3x400V Column drill with belt / belt drive with digital display spindle speeds and drilling depth. Advantages: Drilling in steel up to 25 mm Drilling of...

Item number

T2g-TV 07130030307

€ 1.472,25 *
€ 1.277,25 *
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

Column drilling machine diameter 25 mm 3x400V
Column drill with belt / belt drive with digital display spindle speeds and drilling depth.
Advantages:
Drilling in steel up to 25 mm
Drilling of Morse cone MK3
Digital display of spindle speeds and drilling depth
12 speeds
Motor 3x400V of 750 Watts - aluminum belt pulleys
GATES toothed quality belts
Left-right rotation
Suitable for:
Workshop, maintenance service, schools and training centers
Features:
Guaranteed concentricity accuracy better than 0.02 mm measured in the drill spindle
Spindle with precision ball bearing
Quieter running due to aluminum belt pulleys
Quality toothed drive belts / belts give the machine significantly better power transmission and significantly less performance loss
Drilling depth stop adjustable at the handle
Precision machined worktable with T-slots in diagonal pattern with cooling edge, swivels from -45° to +45° and rotates 360° around the column. The table is easily adjusted in height by means of a wide toothed bar.
One-piece aluminum handle with "soft grip
Solid, large base plate with T-slots
Safety features:
User-friendly operating buttons with separate start and stop push button in IP54 and separate emergency stop
No-load voltage
Safety electrical system in 24V DC
Solid drill shield double window, equipped with safety switch
V-cutter equipped with safety switch
Standard supplied with:
Optimum quick-action chuck 1 -16 mm B16
Cone shank according to DIN228 MK3/B16
2 T-nuts for T-slot 14 mm and thread M12
English manual, inscriptions, CE-mark, and CE-declaration according to Machine directive 2006/42/CE and EMC directive 2014/30/CE
Voltage V 3x400
Power kW 0,75
Drilling cap. in steel S235JR mm 25
Drilling capacity in continuous use S235JR mm 20
Spindle mounting Morse Konus MK 3
Number of speeds 12
Spindle speed min-1 200-2,440
Drilling depth mm 85
Unloading mm 210
Column diameter mm 80
Table dimensions (w x d) mm 330x290
T-slots size/number/distance mm 14 diagonal
Swing-out drilling table ° +/-45
Drilling table rotatable ° 360
Distance spindle-table mm max 720
Distance spindle-foot mm max. 1.230
Dimensions foot (w x d) mm 385x260
T-slots foot mm 16/2/170
Weight kg 85,00
Dimensions (l x w x h) mm 670x355x1,640
