Crankshaft Sprocket Assembly Tool Set for VAG 1.2 TSI, TFSI

Crankshaft Sprocket Assembly Tool Set for VAG 1.2 TSI, TFSI
for disassembling and assembling of the crankshaft gear wheel
also suitable for assembling the front crankshaft seal ring and holding the crankshaft in position
suitable for the following engines:
2L TSI / TFSI engines (CBZA, CBZB, CBZC)
installed in the following vehicle models:
Audi A1 (8X), A3 (8P)
VW Golf VI (5K, AJ, 517), Golf PLUS (5M, 521), Polo V (6R, 6C), Jetta VI (162, 163, AV)
VW Caddy III (2K, 2C), Beetle (5C), Touran (1T)
Seat Altea (5P), Leon (1P), Ibiza IV (6J, 6P), Toledo IV (KG)
Skoda Fabia II (542, 545), Oktavia II (1Z), Rapid (NH1, NH3), Roomster (5J), Yeti (5L)

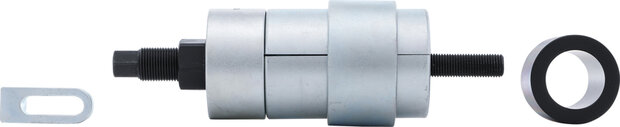

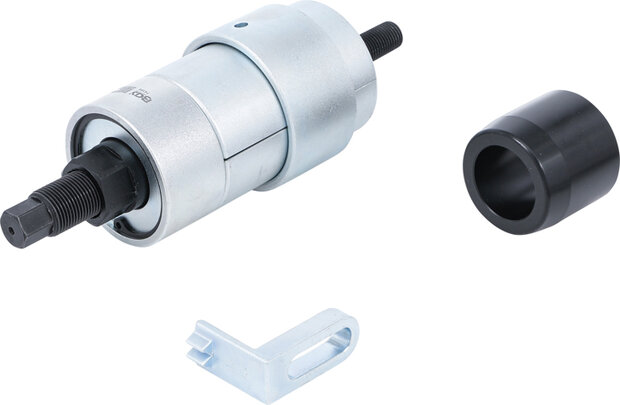

scope of delivery:
1 crankshaft sprocket assembly tool, to be used as OEM T30122
1 flywheel locking tool, to be used as OEM T10311, T10161
1 crankshaft oil seal ring mounting tool, to be used as OEM T10417
Technical data
To be used as OEM1    T10161 | T10311 | T10417 | T30122 Audi
To be used as OEM2    T10161 | T10311 | T10417 | T30122 Seat
To be used as OEM3    T10161 | T10311 | T10417 | T30122 Skoda
To be used as OEM4    T10161 | T10311 | T10417 | T30122 Volkswagen
Gross weight    3102 g
