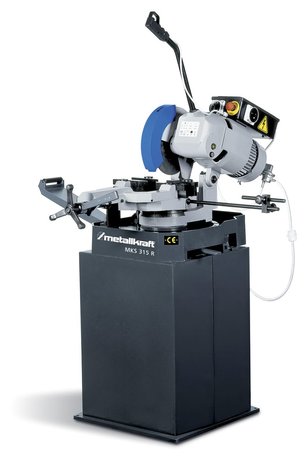

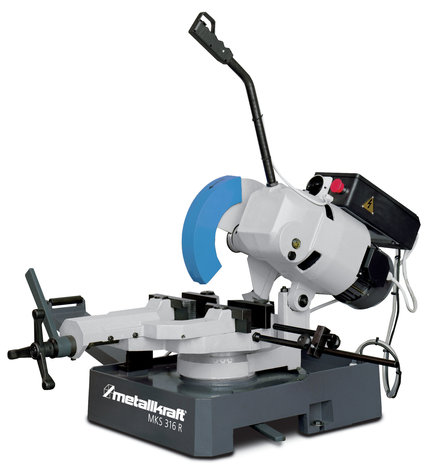

Crosscut saw clutch diameter 315 mm 20/40 TPM

Crosscut saw clutch diameter 315 mm 20/40 TPM
Manual circular saw with slip clutch, saw blade ø 315 mm, two speeds and angle adjustable saw head and tensioning screw. "Made in EU".
Advantages:
Slow running, two sawing speeds 20 and 40 rpm
Equipped with a slip clutch, which eliminates breaking of the saw blade
Swivel saw head and clamping 45° left to 45° right

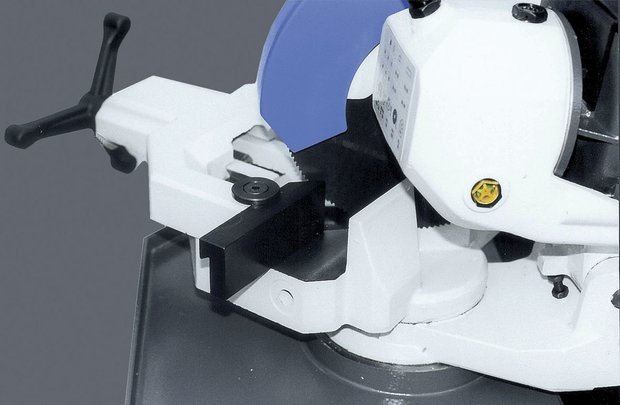

Double clamping with quick-release device and anti-bending bracket
Gear transmission via worm and worm wheel, running in an oil bath
Equipped with brass gear to protect against breakage in case of overload
Automatic diaphragm cooling pump with coolant filter
Suitable for:
Cutting metal profiles, both tube and solid steel, iron, light materials
Cutting stainless steel, if adapted saw blade
Safety features:
Tilting saw blade guard for optimum safety when cutting
Control handle with safety switch
Electrical 24 V low voltage control, overload protection
Lockable main switch
Separate emergency stop
Supplied as standard with :
Membrane cooling pump with filter
Material support roller
Control keys
Length stop 500 mm
English manual, inscriptions, CE-mark, and CE-declaration according to Machine directive 2006/42/CE and EMC directive 2014/30/CE
Tip: the saw blade and base are not included in the delivery, do not forget to order them
Voltage V 3x400
Saw blade diameter x bore mm 315 x 32
Power kW 1,32-1,91
Sawing speed min-1 20/40
Cutting capacity 90° mm 90
Cutting capacity 45° mm 80
Opening clamp mm 120
Working height mm 1015
Weight kg 170,00
Dimensions (l x w x h) mm 1.475x1.000x1.150
