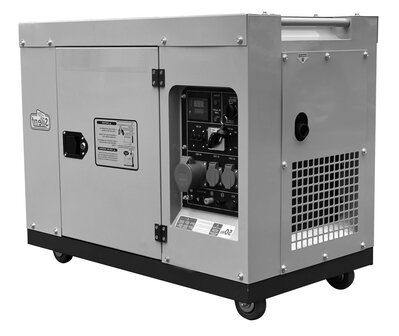

Diesel generator 7.5kw 1x230v + 3x400v
Low-noise diesel generator 6.0 kW at 1x230 V and 7.5 kW at 3x400 V, for use on the construction site, indoor or outdoor events or as an emergency generator for the company and the home.
The power group supplies a continuous power of 5.6 kW at 230 V, and is suitable for allowing various heavy appliances to work together without overloading the fuse.
Type 'Equal power output' with 2 separate fuses on the main board: a separate fuse for 1x230 V and for 3x400 V. This allows you to get maximum power from the generator.
Due to the double fuse, this group is also suitable for 230 V devices with electric motors such as construction machines (grinding machines, sawing machines, etc.), workshop machines (small compressor, drill, vacuum cleaners, etc.), garden tools (lawn mower, hedge trimmer, edger, water pump, etc.). .) or as an emergency generator that can provide sufficient capacity in the event of a power failure.
Characteristics:
Low-noise casing, fully covered with sound-absorbing foam
Sockets: 230V 16A (2x) and 3 x 400V 32A 5-pole
2 separate fuses on the main board (1x230 V and 3x400 V)
6.0 kW maximum power at 1 x 230V
7.5 kW maximum power at 3 x 400V
Fuel consumption at continuous full load: 2.82 liters/hour
Electric start
The generator can be used as an emergency generator. The unit has a 5-pin ATS connection point, to which an external ATS (Automatic transfer switch) can be connected. This ATS manages the operation of the generator in the event of power interruptions to the permanent electrical indoor installation. The ATS cabinet itself is not included.
Air-cooled diesel engine 10.2 hp
Engine speed: 3000RPM
Suitable for and operating time up to 8 hours continuously
AVR voltage regulation: provides a stable output voltage of 230 V. The voltage differences are within +/- 2.5%, making this generator suitable for use with most electronic devices such as construction machines, garden machines, household and kitchen appliances, etc. Not suitable for very sensitive devices such as computers or sensitive electronics.
100% Copper wound alternator
Digital display showing 5 parameters: Voltage (V), Current (A), Frequency (Hz), Power (W) and hour meter
Thermal safety against overload
Automatic switch-off in case of oil shortage
Delivered with:
Wheel set
2 lifting points, for moving with a crane
Battery and key for electric start
Battery 36Ah 12V, dimensions 195 x 125 x 200 mm
Options:
Engine oil 5L MOTOROIL 650 (art 790030050) The generator is supplied without engine oil
Mobile tank 110 liters with pump 12V for the transport of diesel (art 724574516)
Mobile tank 220 liters with 12V pump for the transport of diesel (art 724574500)
Mobile tank 440 liters with 12V pump for the transport of diesel (art 724574502)
Mobile tank 900 liters with pump 12V for the transport of diesel (art 724574515)
Mobile tank 210L 12V electric pump for transport of diesel, gas oil (art 724574490)
Mobile tank 440L 12V electric pump for transport of petrol, gas oil (art 724574491)
Jerrycan in high-quality PE 10L with flexible spout (art 724574494)
Jerrycan in high-quality PE 20L with flexible spout (art 724574495)
Select the suitable generator:
Choose the correct power in kVA or kW: All powers in the table are expressed in kilowatts (kW), and correspond to the power in kVA for a consumer with a power factor (cos fi) of 1.0.
To determine the power in kW that your consumer needs, divide the power of the consumer (in kW) by the power factor of the consumer. For example: consumer requires 6.0 kW/0.8 = 7.5KVA. In this case, a generator must supply 7.5kVA or kW. (a force factor is usually between 0.7 and 1.0)
Generators for electric motors:
If you want to run electric motors with a generator, take into account the start-up peak that these machines require from the generator. For example: water pumps, grinders, compressors, etc. With an unloaded rotor the start-up peak is 2-3 x higher than the current, and with a loaded rotor it is 5-8 x higher. It is therefore important to oversize the generator sufficiently.
Voltage V 1x230 + 3x400
Security circuit Own the property
Start Electric
Battery included Own the feature
Engine type Diesel 4-stroke 633cc
Fuel consumption g/kwh 250
Consumption l/min 0.05
Tank capacity l 30
Oil tank capacity l 1.65
Sockets 230V st 2
Sockets 3x400V pc 1
Noise level dB(A) 72
Inverter Does not own the property
Portable Do not own the property
On wheels Own the property
Frequency Hz 50
Autonomy u 12
Cylinder 1
Maximum power 1 x 230V kW 6.0
Continuous power 1 x 230V kW 5.6
Maximum power 3 x 400V kW 7.5
Continuous power 3 x 400V kW 7.0
Current at 12 V A 8.3
Current at 230 V A 24.3
Current at 400 V A 10.1
Weight kg 198.00
Dimensions (l x b x h) mm 1,030x610x830
