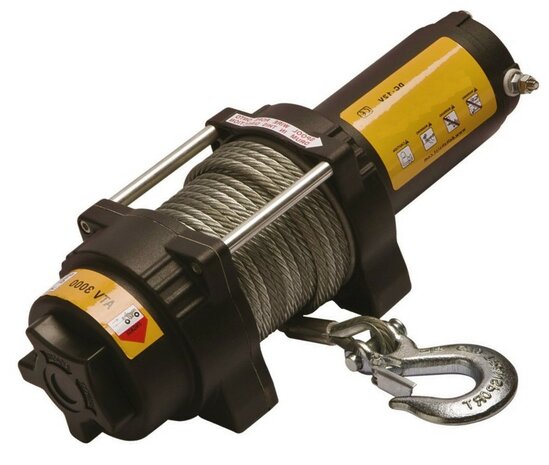

Direct current towing winch 12 Volt 1.36 tons

Direct current towing winch 12 Volt 1.36 tons
Permanently lubricated transmission, ensures smooth and quiet operation, only suitable for pulling work, only suitable for recovery of vehicles or boats, with freewheel function, supplied with control switch, power cable and steel cable with hook, the vehicle battery must be powered by a constantly running motor, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Capacity 1st layer - 1.36 tons
Capacity upper layer - 0.76 ton
Towing range - 8m
Max pulling speed 1st layer - 2.1 m/min
Steel wire m x diameter mm - 10 x 5.5
Power consumption - 1kW
Weight - 7.5kg
Application - Pull Winch
Voltage - 12V
Pull speed - Single speed
Cable - Steel cable
Steering cable - Standard ≈ 1 meter
Power cable - ≈ 1 meter with battery connectors
Housing protection - IP 67
Control protection - IP 65
Operating temperature -20 ° C - +85 ° C
Load type - Only for goods, not suitable for lifting people
Overload protection - Without overload protection
Brake - Mechanical brake
Limit switch - No limit switch
