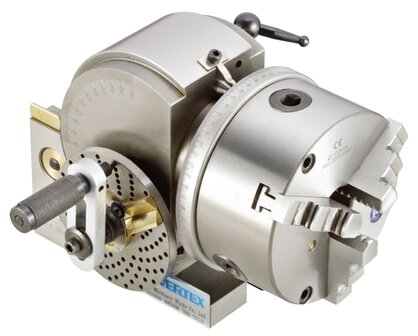

Dividing head with Jaw chuck

Dividing head with Jaw chuck Semi-Universal Dividing head for indirect cutting With 3-jaws Chuck VSC-5A Clamping range O.R. Diameter 3 - 110 Clamping range I.R. Diameter 35 - 100 Axis height...

Item number

: T2g-VB 93216

€ 1.331,88 *

€ 1.100,73 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Dividing head with Jaw chuck
Semi-Universal Dividing head for indirect cutting
With 3-jaws Chuck VSC-5A
Clamping range O.R. Diameter 3 - 110
Clamping range I.R. Diameter 35 - 100
Axis height 100mm
Accessories - see photo (TS-1 tailstock, dividing discs, flange, MT-2 centering tip, ..)
With the dividing discs, it is possible to divide the circumference into 15-49 parts
Divider flange diameter: 130mm
Total height of the divider: 173mm
Base size: 160 x 91mm
Possibility of smooth tilting 90 °
Dividing possible in vertical and horizontal position
Inner morse taper divider: MT2
Hardened and ground auger, precision tapered roller bearings
Gear ratio 40: 1
Holes for fixing with 16mm screws
Weight 24kg
