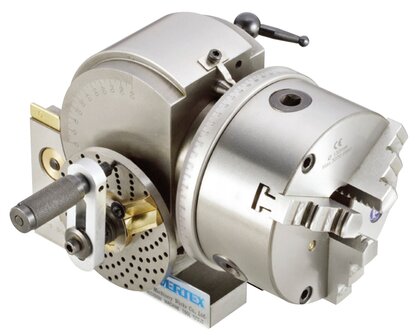

Dividing head with Jaw chuck 42kg

Dividing head with Jaw chuck 42kg Semi-Universal Dividing head BS-1-J-6 for indirect cutting With 3-jaws Chuck VSC-6A Clamping range O.R. Diameter 3 - 160 Clamping range I.R. Diameter 48 - 150...

Item number

: T2g-VB 13416

€ 1.588,65 *

€ 1.312,94 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Dividing head with Jaw chuck 42kg
Semi-Universal Dividing head BS-1-J-6 for indirect cutting
With 3-jaws Chuck VSC-6A
Clamping range O.R. Diameter 3 - 160
Clamping range I.R. Diameter 48 - 150
Axis height 128mm
Accessories - see photo (TS-2 tailstock, dividing discs, flange, MT-3 centering tip, ..)
With the dividing discs, it is possible to divide the circumference into 15-49 parts
Divider flange diameter: 165mm
Total height of the divider: 220mm
Base size: 205 x 114mm
Possibility of smooth tilting 90 °
Dividing possible in vertical and horizontal position
Inner morse taper divider: MT3
Hardened and ground auger, precision tapered roller bearings
Gear ratio 40: 1
Holes for fixing with 16mm screws
Weight 42kg
