Drill retainer pin with Morse cone intake DIN228

Drill retainer pin with Morse cone intake DIN228 Drill chuck pin with morse cone MK uptake DIN228 for drills and lathes Trumps: Hardened and ground Morse cone recording according to DIN228...

Item number

: T2g-TV 87130506587

€ 15,00 *

TV 87130506587 Choose*: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

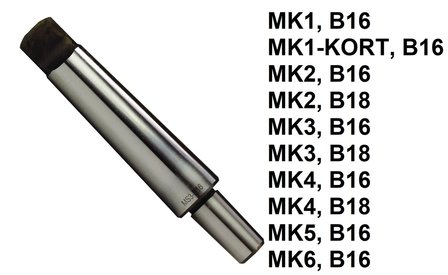

Drill retainer pin with Morse cone intake DIN228
Drill chuck pin with morse cone MK uptake DIN228 for drills and lathes
Trumps:
Hardened and ground
Morse cone recording according to DIN228
Suitable for:
These pins can be used on all drills, such as B16, D23PRO, B28H, etc.
Conventional lathes to place in the counterpoint of the lathe, such as TU2004V, TU2506, TH4610, etc.
790023079 MK1 shortened version for use with TU1503V
Tip: First check which spindle your machine is equipped with and then select the appropriate cone mandrel

Connection	Drill head lace	Weight	Dimensions (l x w x h)
MK1	B16	0,08kg	300x300x250mm
MK1	B16	0,08kg	300x300x250mm
MK2	B16	0,16kg	300x300x250mm
MK2	B18	0,18kg	300x300x250mm
MK3	B16	0,20kg	300x300x250mm
MK3	B18	0,22kg	300x300x250mm
MK4	B16	0,62kg	300x300x250mm
MK4	B18	0,64kg	300x300x250mm
MK5	B16	1,56kg	300x300x250mm
MK6	B16	0,50kg	300x300x250mm
