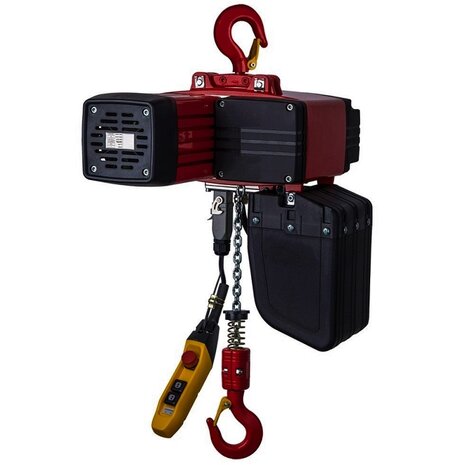

Electric chain hoist 400V with lifting height double speed

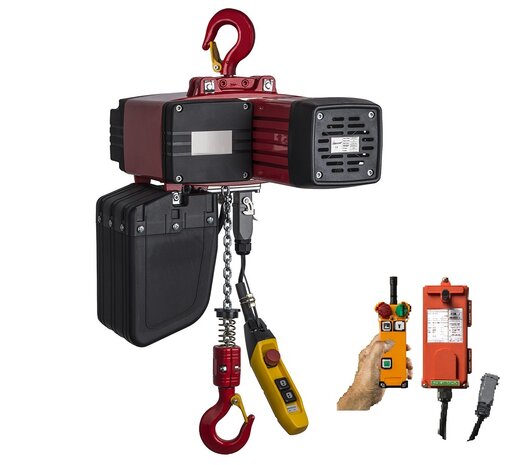

Delta Electric chain hoist - 400V with lifting height - double speed (with wireless option)

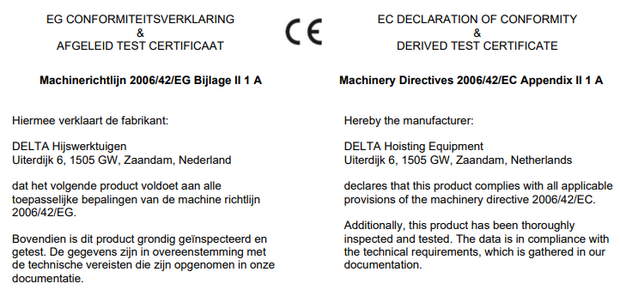

With SIEMENS / EATON control system, robust construction, suitable for a wide range of industrial applications, swivel load hook with safety valve, easy to dismantle for maintenance purposes, permanently lubricated transmission, ensures smooth and quiet operation, supplied with control switch, power cable and chain box, complies with Machinery Directive 2006/42/EC, supplied with test certificate,CE declaration of conformity and operating instructions.
Hoisting speed m/min 8/2
Lifting chain diameter x mm 4x12
Parts 1
Energy consumption KW 0.4/0.1
Net weight 22kg
Additional weight kg/m 0.4
Voltage 400-440V / 50Hz / 3Ph
Hoisting speed Double speed
Lifting chain Load chain according to EN 818-7-DAT/DT
Housing protection IP 55
Control protection IP 65
Rating M5/2m (ISO/FEM)
Duty cycle 40% / 240
Insulation class F
Operating temperature -10°C - +40°C
Load type Only for goods, not suitable for lifting persons
Control cable Standard ≈ 6 meter
Power cable ≈ 1 meter without plug
Switch 24V switch with emergency stop
Overload protection Externally adjustable slipping clutch
Brake: Electro-mechanical spring-loaded brake, keeps load steady even in case of power failure
Limit switch: Electro-mechanical upper and lower limit switch
Thermal protection: Protected by heat sensor
