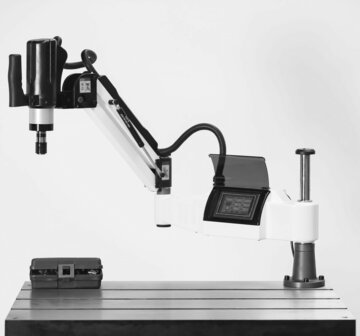

Electric tapping arm m16 to m42 - 1300 mm
Electric tapping machine with touch screen, PLC control and variable speed control
Trumps:
Energy saving; low maintenance
No expensive compressor needed
Powerful servomotor
Less noise than pneumatic
With PLC control via touchscreen: simply enter pitch, depth and speed.
Variable speed control
Equipped with horizontal and vertical adjustable tapping spindle
Suitable for:
Tap all kinds of materials
General Industry
Characteristics:
Powerful anodized arms
Easily enter your data in both Dutch and French
All pivots are equipped with lifetime lubricated bearings
A weightless operation is obtained by the gas springs
Low voltage and no-load voltage
Protection against overheating
Delivered with:
With 12 taps with slip clutch
Dutch manual, inscriptions, CE mark, and CE certificate according to Machine Directive 2006/42/CE and EMC Directive 2014/30/CE
Tip: Optionally available mobile workbench with cast iron worktop with T-slots, 900 x 600 mm, 795940502
For taps M16-M42
Speed rpm 50
Effective range over 360° (1) Rmax mm 1300
Type diameter 48
Tapping heads M16, M18, M20, M22, M24, M30, M33, M36, M38, M39, M40, M42
Power kW 1.2
Voltage V 1 x 230
Weight kg 110.00
