Gantry crane 2t + electric hoist and trolley 500/1000kg

Gantry crane 2t + electric hoist and trolley 500/1000kg

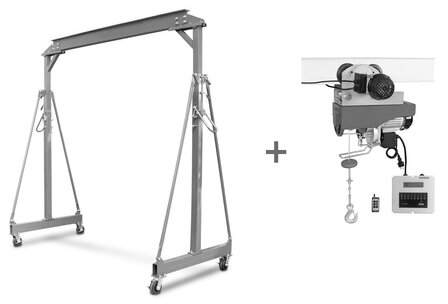

Pack consisting of: PTLK2 gantry crane and TH500-R Electric hoist with trolley.
Gantry crane 2 tons PTLK2
Characteristics:
Adjustable height 2500 - 3600 mm with levers and safety bolts.
Swivel wheels with brake
Stable and safe and at the same time compact and easily movable
Reinforced upper beam and wheel bar with cross slats
Beam clamp 88 x 160 mm
Electric hoist 500/999 kg TH500-R
Features:
1 wireless remote control for both trolley and hoist together
No cables in the way and easy operation from any operator position
Trolley suitable for IPE and H beams from 68 mm width
Trolley suitable for beams with radius up to 1 m
Hoist with emergency stop on control panel
IP54 protection class and CE approved
Switch-on time: 20%, per 10 minutes 2 minutes can be hoisted
Supplied with:
Wireless remote control
Options
Suitable chain hoists:
Hand hoist 2000kg 6 meters with hook (758582060)
Electric chain hoist 150kg 6 meters with hook 230V (758613105)
Electric chain hoist 300kg 6 meters with hook 230V (758613107)
Electric chain hoist 2000kg 6 meter with hook 230V (758613131)
Electric chain hoist 2000kg 6 meter with hook 3x400V, industrial (729840102)
Electric chain hoist 2000kg 6 meter with trolley 3x400V, industrial (729840112)
Chain hoists with hook can be attached to the gantry crane with a beam clamp (754751502)
Suitable wire rope hoists:
Electric wire rope hoist 200kg 12 meters with trolley 230V (758613100 )
Electric wire rope hoist 500kg 18 meters with trolley 230V (758613102)
Other lifting accessories:
Manual trolley 2 tons free-running (758592020)
Manual trolley 2 tons with chain drive (758592525)
Beam clamp 2 tons (754751502) Suitable for suspending chain hoists with hook, or for lifting H-beams
Lifting clamp 2 tons (716172002) suitable for lifting steel profiles and sheet material
Lifting magnets from 100 to 1000kg (PLM101, PLM301, PLM601, PLM1001)
Note: always select lifting accessories with a capacity in accordance with that of the hoist used.
Voltage V 230
Lifting speed m/min 8
Cable length m 18
Cordless Feature
Capacity double kg 999
Capacity single kg 500
Beam width (M) mm 68 - 110
Speed trolley m/min 14.5
Power trolley W 180
Weight kg 182.00
Dimensions (l x w x h) mm 2.540x1.100x2.520
