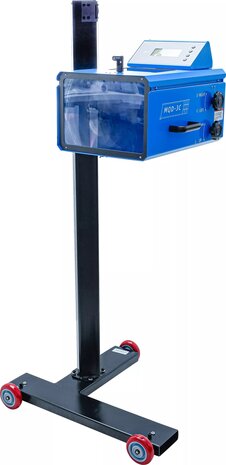

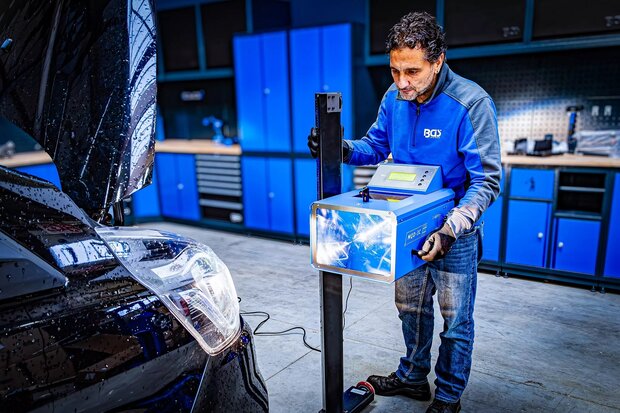

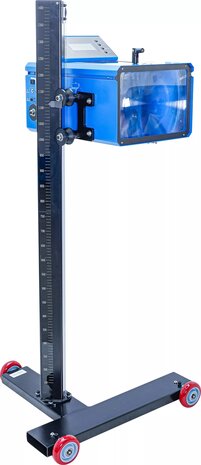

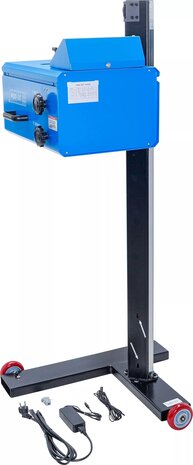

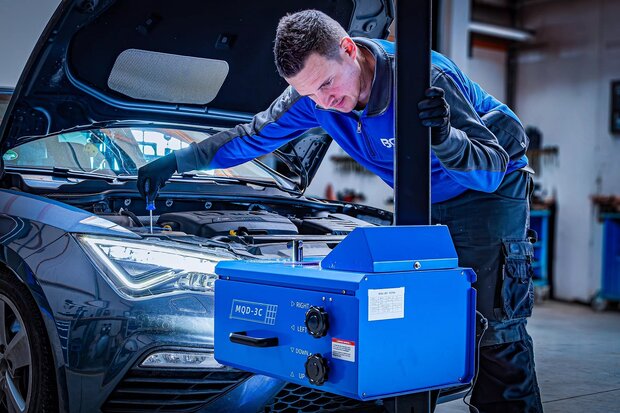

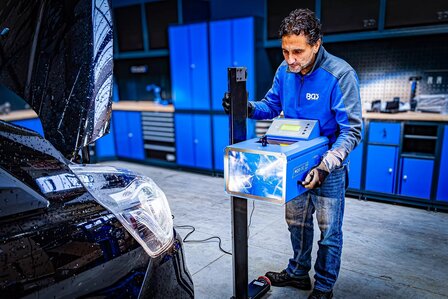

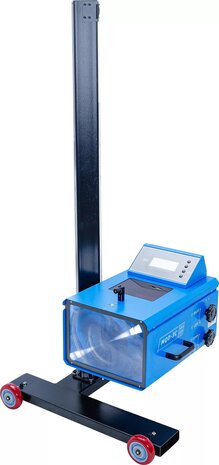

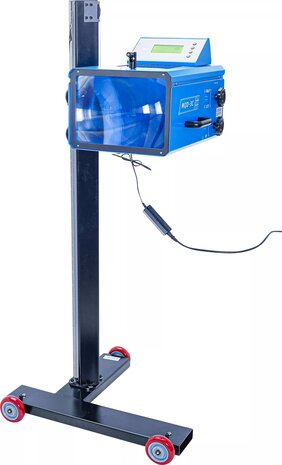

Headlamp Adjustment Setter

Headlamp Adjustment Setter for adjusting the low beam and high beam of vehicle headlights horizontal + vertical adjustment scale easy handling and modularity applicable range: halogen lamp, HID...

Item number

: T2g-GL B 74582

€ 3.775,26 *

€ 2.421,00 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Headlamp Adjustment Setter
for adjusting the low beam and high beam of vehicle headlights
horizontal + vertical adjustment scale
easy handling and modularity
applicable range: halogen lamp, HID lamp, incandescent lamp, high beam, low beam
vertical deviation: top 350 mm at 10 m (2°) / bottom 525 mm at 10 m (3°)
horizontal deviation: left 525 mm at 10 m (3°) / right 525 mm at 10 m (3°)
measuring distance: 500 mm +/- 5 mm or 1000 mm +/- 5 mm
measuring height: 400 - 1300 mm
intensity: up to 120000 candela
deviation: +/- 12' at 500 mm / +/- 15' at 1000 mm
ambient temperature: -5 - 40 °C
relative humidity: power supply: 12 V DC power supply
Width   570 mm
Gross weight   43000 g
Height   1400 mm
Length   680 mm
Plug   C (CEE 7/16)
