Industrial quick-clamping drill chuck type XHSP

Industrial quick-clamping drill chuck type XHSP Trumps: Double clamping force compared to the normal type Particularly suitable for CNC machines Higher security thanks to the holes provided for...

Item number

: T2g-TV 67900150867

€ 126,31 *

TV 67900150867 Choose*: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

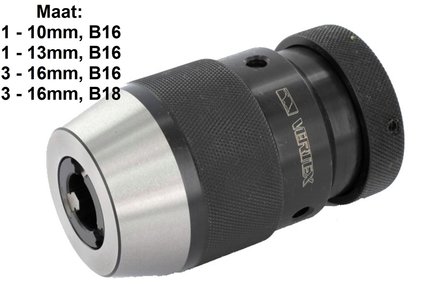

Industrial quick-clamping drill chuck type XHSP
Trumps:
Double clamping force compared to the normal type
Particularly suitable for CNC machines
Higher security thanks to the holes provided for key-locking
Double clamping force
Double clamping force compared to the normal type. Excellent concentricity within 0.05 mm over 50 mm length. High quality
Prevents loosening
Prevents loosening in case of rapid change of direction of rotation. Equipped with holes for locking with a key for higher security.
Optional key

Type boorhouder	Snelspan	Snelspan	Snelspan	Snelspan
Klembereik	1 - 10mm	1 - 13mm	3 - 16mm	3 - 16mm
Aansluiting	B16	B16	B16	B18
Lengte open	80,8mm	93,7mm	96,10mm	97mm
Lengte gesloten	91,1mm	105,3mm	110,3mm	110,4mm
Sleuteltype	11034	11031	11032	11032
Toepassing	Boren	Boren	Boren	Boren
Gewicht kg	0,28	0,31	0,35	0,35
