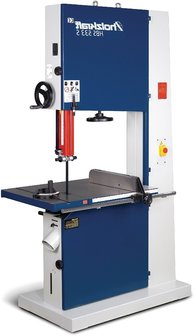

Industrial vertical band saw 3.75kw
Advantages:
Machine with high dead weight, one-piece construction guarantee quiet and quiet operation
Large saw table made of cast iron with a ground and polished surface that can be tilted from 0-20° with a scale.
Laser line for quick and precise work
Patented height adjustment of the table by means of a rotary knob and toothed bar with a scale
Saw tire tensioning by means of an eccentric lever on the rear
Ceramic band saw guide 3 rollers at top and bottom, with fine adjustment
Integrated display of saw ball tension for different saw band widths
Large cast iron stop
Drive wheels made of cast iron with special coating for increased saw blade life
Suitable for:
the industry, the better workshop
Standard delivered with:
1 x saw blade
1 x angle stop up to 60
1 x heavy cast iron parallel stop
English manual
Voltage V 3x400
Power kW 3,75
Max. saw width stop mm 465
Length sawblade mm 4190
Diameter suction mm 2x100
Max cutting width without stop mm 510
Maximum cutting height mm 350
Flywheel diameter mm 530
Cutting speed m/min 1400
Top-down saw blade guide
Diameter suction mouth mm 2x100
Tilting working table ° 0-+20
Size worktable (l x w) mm 750x530
Weight kg 305,00
Dimensions (l x w x h) mm 1.000x720x2.040
