Insert Nut Assortment Brass 330 pcs
for installing in conical holes
can be easily embedded in a blind or go-through hole
can be subsequently inserted into plastic joints, injection molding or 3D printed products with the application of heat or ultrasound
used in notebooks, electrical appliances, toys, motorcycles and various plastic shells
metric internal thread
high quality brass material, heat resistant

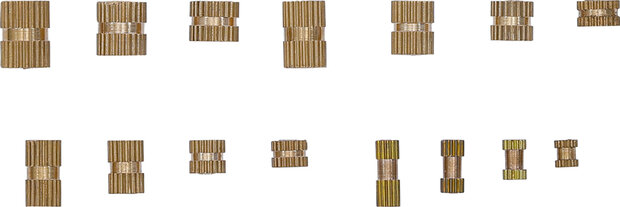

straight knurled surface for accurate fit in the assembly object
high hardness for long service life

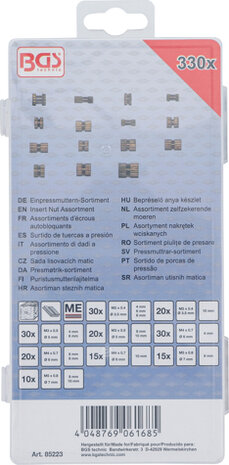

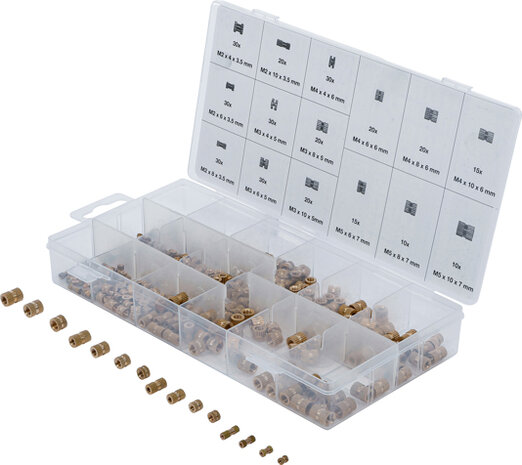

scope of delivery:
30 insert nuts / thread inserts. M2 x 0.4, length 4 mm, Ø 3.5 mm
30 insert nuts / thread inserts. M2 x 0.4, length 6 mm, Ø 3.5 mm
30 insert nuts / thread inserts. M2 x 0.4, length 8 mm, Ø 3.5 mm
20 insert nuts / thread inserts. M2 x 0.4, length 10 mm, Ø 3.5 mm
30 insert nuts / thread inserts. M2 x 0.5, length 4 mm, Ø 5 mm
30 insert nuts / thread inserts. M2 x 0.5, length 6 mm, Ø 5 mm
20 insert nuts / thread inserts. M2 x 0.5, length 8 mm, Ø 5 mm
20 insert nuts / thread inserts. M2 x 0.5, length 10 mm, Ø 5 mm
30 insert nuts / thread inserts. M2 x 0.7, length 4 mm, Ø 6 mm
20 insert nuts / thread inserts. M2 x 0.7, length 6 mm, Ø 6 mm
20 insert nuts / thread inserts. M2 x 0.7, length 8 mm, Ø 6 mm
15 insert nuts / thread inserts. M2 x 0.7, length 10 mm, Ø 6 mm
15 insert nuts / thread inserts. M2 x 0.8, length 6 mm, Ø 7 mm
10 insert nuts / thread inserts. M2 x 0.8, length 8 mm, Ø 7 mm
10 insert nuts / thread inserts. M2 x 0.8, length 10 mm, Ø 7 mm
Technical data
Material Solid brass
Packaging suitable for wall hanging Yes
Gross weight 326 g
