Mobile gantry crane 1ton wide and high

Mobile gantry crane 1ton wide and high

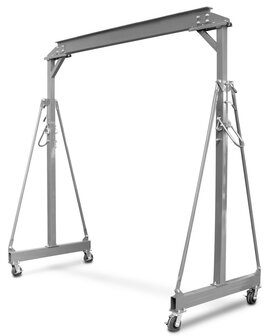

Mobile gantry crane 1ton, with 3200mm width and 4200m height.
Due to its wide and high dimensions, this crane is suitable for use with trucks, trailers, vans, tractors, trailers, etc.
This mobile crane is ideal for all kinds of lifting work in transport and logistics, assembly and assembly work in production plants and in areas where there is no fixed overhead crane.
Features:
Model 1 Ton
High model: Adjustable height 3500-4200 mm. Free inside dimension is adjustable between 2580-4000mm high.
Wide model: 2955mm free inner dimension. Suitable for lifting loads from various vehicles such as trailers, vans on trucks.
Beam size: 140x80mm
Swivel casters with brakeStable and safe while compact and easy to move
Reinforced upper beam and wheel bar with cross slats
The height can be adjusted when unloaded, with a set of levers and safety bolts.
Suitable chain hoists:
Hand hoist 1000kg 6 meters with hook (758581060)
Electric chain hoist 150kg 6 meters with hook 230V (758613105)
Electric chain hoist 300kg 6 meters with hook 230V (758613107)
Electric chain hoist 1000kg 6 meter with hook 230V (758613130)
Electric chain hoist 1000kg 6 meter with hook 3x400V, industrial (729840101)
Electric chain hoist 1000kg 6 meters with trolley 3x400V, industrial (729840111)
Chain hoists with hook can be attached to the gantry crane with a beam clamp (716171901)
Suitable wire rope hoists:
Electric wire rope hoist 200kg 12 meters with trolley 230V (758613100 )
Electric wire rope hoist 500kg 18 meters with trolley 230V (758613102)
Other lifting accessories:
Manual trolley 1 ton free-running (758591010)
Manual trolley 1 ton with manual chain drive (758591515)
Electric trolley 1 tonne (758592527)
Beam clamp 1 ton (716171901). Suitable for suspending chain hoists with hook, or for lifting H-beams
Lifting clamp 1 ton (716172001) suitable for lifting steel profiles and sheet material
Lifting magnets from 100 to 1000kg (PLM101, PLM301, PLM601, PLM1001)
Note: always choose lifting accessories with a capacity corresponding to that of the hoist used
Height minimum mm 3500
Height maximum mm 4200
Maximum height mm 4200
Cordless Does not have the feature
Weight kg 156.00
Dimensions (l x b x h) mm 2,4x1,2x2,4
