Plane cutter holder along transverse DIN6362 MK

Plane cutter holder along transverse DIN6362 MK Combined surface cutter holders DIN6362, longitudinal and transverse use, with connection of morse cone with threaded connection DIN228. Features:...

Item number

: T2g-TV 27133521027

€ 72,52 *

€ 48,03 *

Price per unit

TV 27133521027 Choose*: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

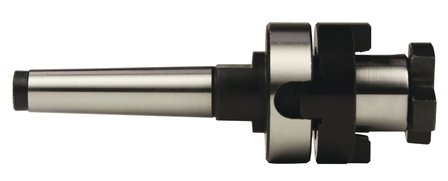

Plane cutter holder along transverse DIN6362 MK
Combined surface cutter holders DIN6362, longitudinal and transverse use, with connection of morse cone with threaded connection DIN228.
Features:
- Longitudinal and transverse use
- Hardened and ground
- With Morse Cone connection with wire DIN228
- According to DIN6362
Suitable for:
- Including flat, sheathed and disc cutters of all known brands with a hole in the shaft from 16 to 32 mm.
- Other sizes on request.

Aansluiting MK	Boring vlakfrees D	Breedte mm	Gewicht kg
2M10	16mm	8mm	0,30kg
2M10	22mm	10mm	0,30kg
2M10	27mm	12mm	0,30kg
3M12	16mm	8mm	0,35kg
3M12	22mm	10mm	0,35kg
3M12	27mm	12mm	0,35kg
3M12	32mm	14mm	0,35kg
4M16	16mm	8mm	0,50kg
4M16	22mm	10mm	0,50kg
4M16	27mm	12mm	0,50kg
4M16	32mm	14mm	0,50kg
