Pneumatic Injector Extractor Set

Pneumatic Injector Extractor Set
for compressed air-assisted removal of particularly tight diesel injectors

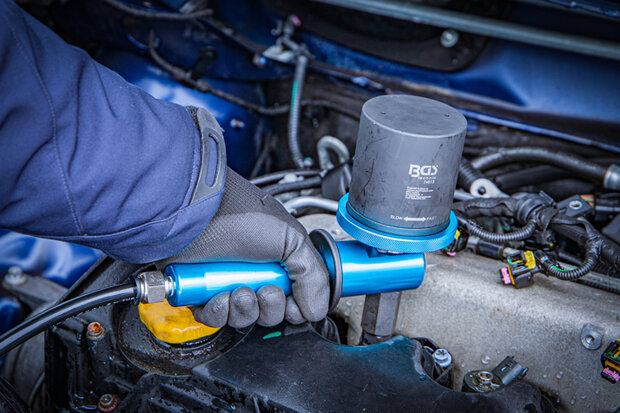

the diesel injectors are removed from the cylinder head by pneumatically generated impact effect
coking and rust deposits are broken up and the injector will released from sealing seat

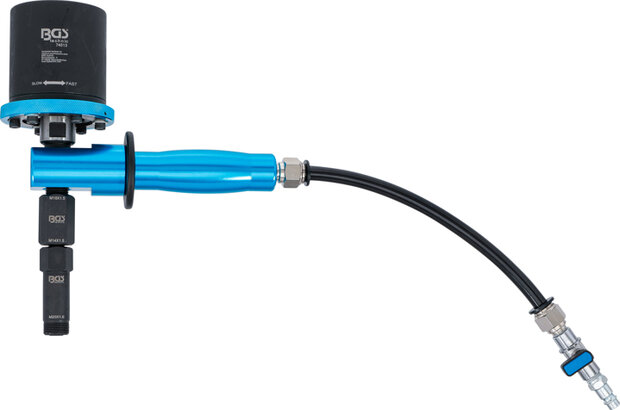

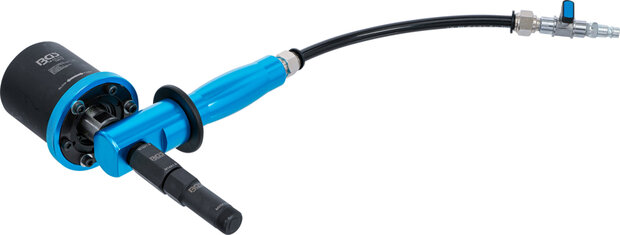

the extractor is screwed in directly to the fixed injector by using the corresponding adapter
compact design
high impact effect
including a wide range of adapters, suitable for the most commonly used diesel injectors
piston stroke: 38 mm
lifting speed: 300 / 900 per minute
connecting hose: Ø 12 mm

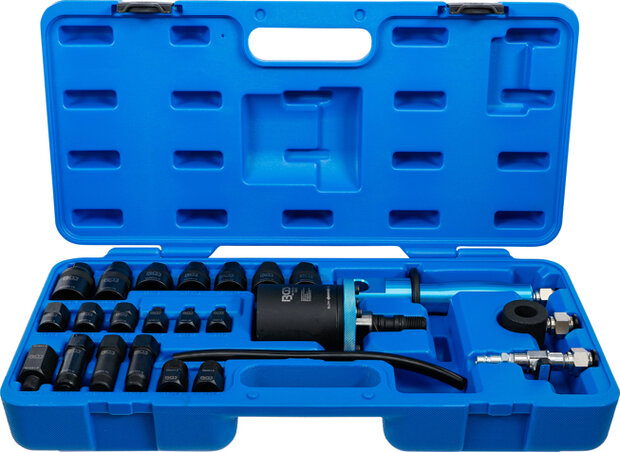

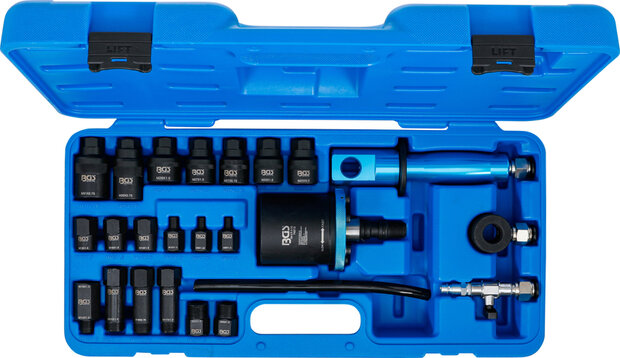

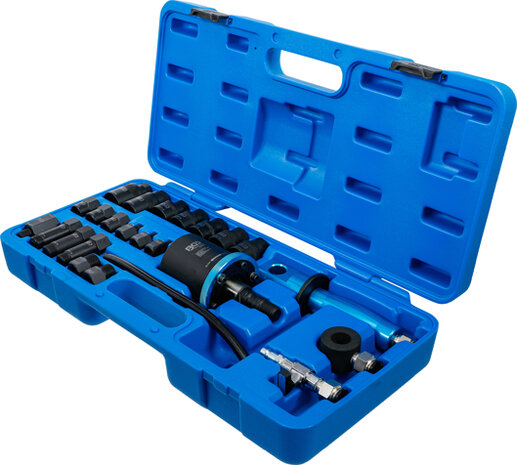

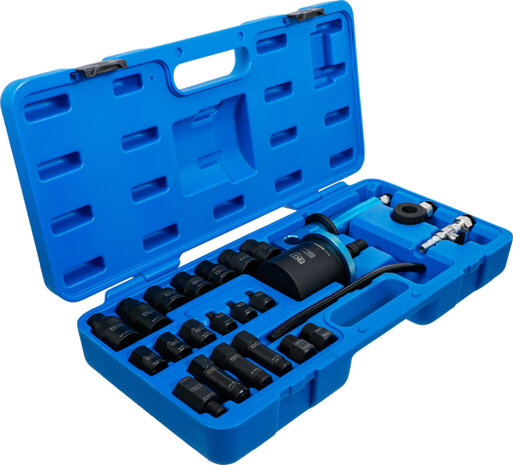

scope of delivery:
1 pneumatic injector extractor
1 compressed air adapter with handle
1 compressed air adapter without handle
1 compressed air valve
1 connecting hose
1 internal thread adapter M31 x 0.75
1 internal thread adapter M26 x 0.75
1 internal thread adapter M29 x 1
1 internal thread adapter M27 x 1
1 internal thread adapter M27 x 0.75
1 internal thread adapter M25 x 1
1 internal thread adapter M25 x 0.5
1 internal thread adapter M18 x 1.5
1 internal thread adapter M16 x 1.5
1 internal thread adapter M14 x 1.5
1 external thread adapter M10 x 1.5
1 external thread adapter M8 x 1.25
1 external thread adapter M8 x 1
1 external thread adapter M14 x 1.5
1 external thread adapter M20 x 1
1 external thread adapter M18 x 0.75
1 external thread adapter M17 x 1
1 external thread adapter M22 x 1.5
1 external thread adapter M20 x 1.5
Technical data
Max. torque    600 Nm
Gross weight    6142 g
Spindle thread    M18 x 1,5
