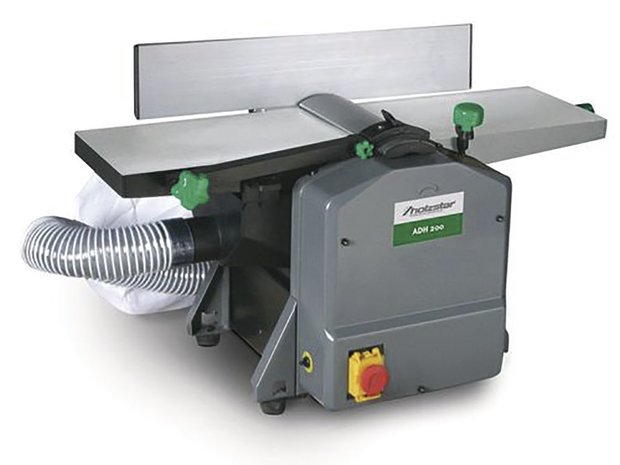

Portable planer thicknesser - 204mm - 2mm
Compact, portable combined surface and thickener. Planing width 204 mm.
Features:
Ideal for transport due to its small and compact design.
Simple and precise adjustment of the planing thickness (up to 2 mm)
Automatic throughput of material.
Steel gear-driven insertion rollers for equal and constant supply of the wood.
Rubber discharge rollers work gently on the surface during thickness planing.
Easily adjustable aluminium stop, rotatable from 0° to 45°, with scale indication.

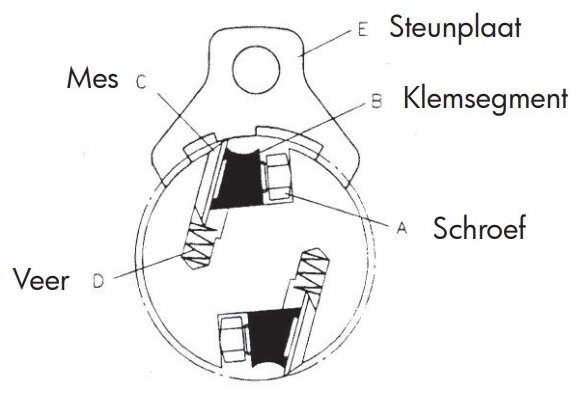

Planing blades are shielded with a practical clamping mechanism.
Profiled top table, made of die-cast aluminium.
Powerful 230V motor
Suitable for:
Precise flattening of solid wood slabs and slats
The homeworker and hobbyist.
Delivered with:
Knife guide with 2 HSS flat-planing knives
Integrated extraction with collection bag
Tip: You can obtain a magnification of ø 60/100 (715142427) or ø 80/100 (715142421) to connect to your extraction system.

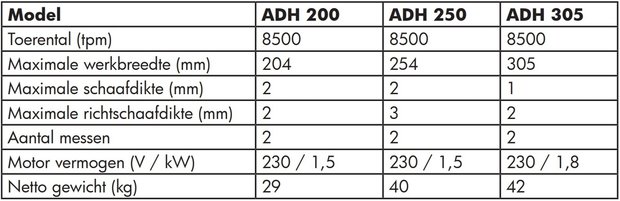

Voltage V 1x230
Working height minimum/maximum mm 5 / 120
Maximum planing capacity/transit mm 2
Speed automatic feeding m/min 7
Diameter planing wheels mm 50
Speed rpm 8500
Power kW 1.5
Extraction diameter mm 58
Dimensions flat table (l x w) mm 757x210
Dimensions of thickness table (l x w) mm 255x204
Planing width mm 204
Number of knives 2
Weight kg 29,00
Dimensions (l x b x h) mm 790x470x465
