Protective cover for traditional drills 230mm Protective cover for traditional drills 230mm
Protective cover for traditional drills 230mm Protective cover for traditional drills 230mm
Protective cover for traditional drills 230mm
Protective cover for traditional drills 230mm Guard for traditional column drills and small, radial drills. Features: Third generation safety guard for drills "Made in EU". Convenient...

Item number

T2g-TV 27900087827

€ 392,60 *
€ 366,60 *
Price per unit
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

Protective cover for traditional drills 230mm

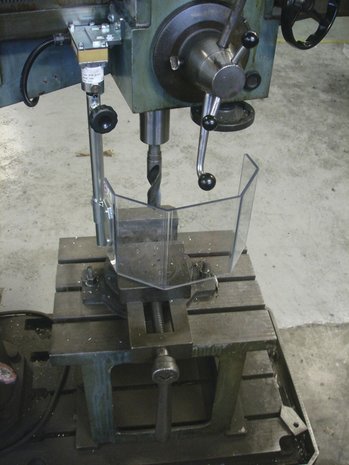

Guard for traditional column drills and small, radial drills.
Features:
Third generation safety guard for drills "Made in EU".
Convenient design and the only one with double screen adjustment
Polycarbonate screen
Protects operator from direct contact with rotating parts and chips and from splashing lubrication - coolant
Equipped with a microswitch n.2 NC contacts, is a positive contact as described in EN 60947-5-1.
Suitable for:
traditional large column drills, pantographs and similar machines
Delivered with:
CE mark
CE certificate
Instruction / assembly manual
Attention: this type of protection requires adjustments to be made in order to mount on your column drill. A safety shield must be installed by qualified personnel. The estimated working time is approximately 2 hours, provided there is an emergency stop circuit. In case of questions or installation, you can always contact our technical department.
Tip: When choosing the shielding, you should take into account the drilling depth, as well as the width of the spindle, which should be shielded, and also the safety of the operator.

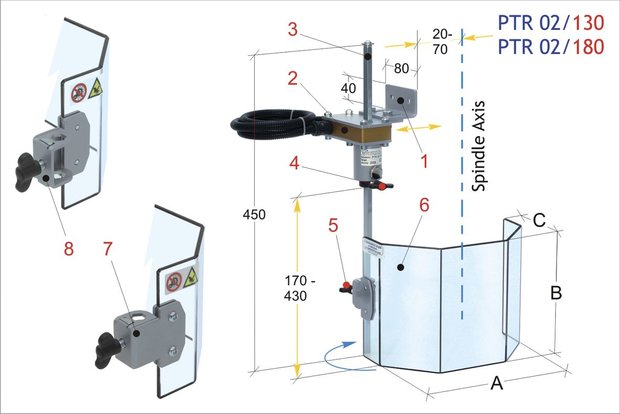

A mm 230
W mm 130
Slot depth mm 115
Weight kg 2,50
