Description

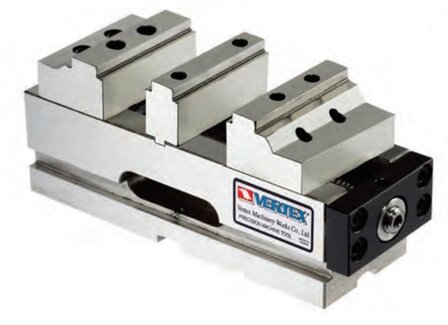

Self-Centering Dual Machine Vise 131mm
The machine vise is a highly precise dual self-centering vise, designed for use on 4-axis and 5-axis CNC machines. This vise is ideal for demanding machining operations where high precision, repeatability, and the ability to clamp multiple workpieces simultaneously are required. It features a compact design, high clamping force, and quick setup capabilities.
Key Features:
Accuracy: 0.01 mm / 100 mm
Jaw width: 131 mm
Jaw opening: 2×76 mm (up to 180 mm with the removal of the central fixed jaw)
Clamping force: 1000 kgf
Weight: 22 kg
Overall height: 120 mm
Jaw hardness: HRC 45° (hardened and ground)
Construction and Material:
Self-centering mechanism: This vise automatically aligns the workpiece to the center, ensuring precise clamping and reducing setup time.
Fixed central jaw, which is removable, allowing the clamping range to be expanded to 180 mm.
Hardened and ground surfaces: All functional surfaces of the vise are precision-hardened and ground, providing excellent wear resistance and long service life.
Advantages:
Multiple clamping: The vise allows multiple units to be placed on the CNC machine table, significantly increasing productivity and efficiency.
Compact and symmetrical design: The vise is designed to allow effective machining from multiple sides without the need for repositioning.
High precision and repeatable clamping: Thanks to the self-centering mechanism and smooth jaws, it provides stable and precise clamping even under demanding working conditions.
