Set of column slewing crane 1ton manual chain hoist 1ton

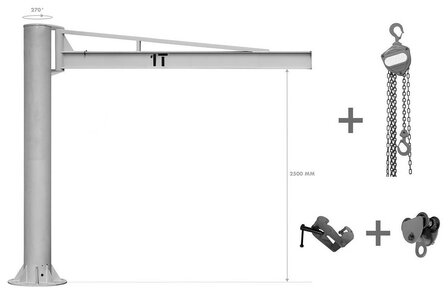

Set of manual column slewing crane KZK100 with manual chain hoist HNSJ1060, beam clamp BKL1 and trolley HNRK1T. Lifting capacity 1000kg.
Features of the slewing crane 1 tonne (KZK100)
Industrial column slewing crane manual, 1 ton with jib length 3 meters.
This Industrial 270° slewing crane with manual operation is suitable for various applications such as lifting at loading and unloading areas, manipulating workpieces, lifting on floors, workstations with tool changes, outside at the unloading quay, etc.
Advantages:
Manual slewing crane
Suitable for use with optional hoists and lifting accessories, both manual and electric
Load capacity 1 ton, over the entire jib length
Overall boom length of 3000mm, and a total reach of 6000mm
Swing angle of 270
Limited height, and therefore also suitable for low spaces
Characteristics:

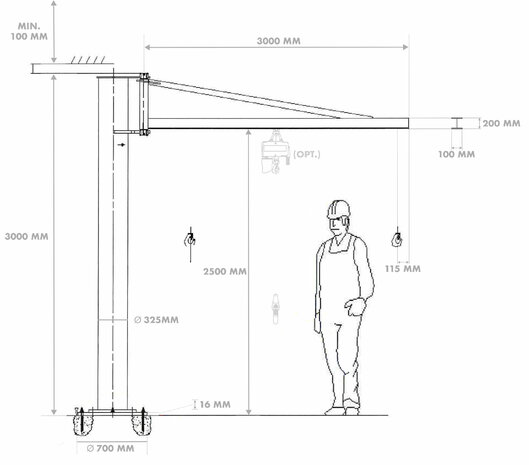

Dimensions of horizontal H-beam: beam width 100mm, beam height 200mm
Vertical column with bottom plate with thickness of 16mm
Diameter of bottom plate: 700mm
Total column height of 3000 meters, net height of 2500mm
The mounting of the bottom plate should be done with chemical anchoring on a sufficiently strong concrete slab. A reinforced concrete base is recommended of 1.5x1.5x1.5 meters with strength C20/25 (B25), with cast-in threaded rods.
Finished in primer RAL7035
Tips for assembly:
Supplied without fasteners.
The mounting of the base should be done with appropriate chemical anchoring on a sufficiently strong concrete slab. A reinforced concrete base is recommended of 1.5x1.5x1.5 meters with strength C20/25 (B25), with a cast-in-place steel structure with fixing bolts
The crane is delivered in 2 parts, and is installed by the customer. It is recommended to provide a forklift, lifting aids, and 2 people for a full working day for the installation
Optionally, the installation can be performed by our services. Contact our inside sales department for more information
Supplied with 2 spray cans of primer for touching up any minor scratches after assembly
Features of the 1 tonne chain hoist (HNSJ1060)
With load pressure brake that holds the load at any position
Top and bottom hook equipped with safety lip
Galvanized chains
Features of the Beam Clamp 1 tonne (BKL1)
Capacity 1 tonne
Large clamping range 75 - 220 mm, adjustable with spindle
For profiles IPE, INP, HEA
Low height, little loss of space
Simple assembly
Features of the manual trolley (HNRK1T)
Capacity 1 tonne
Manual model without brake
Eye with diameter 52mm
Compatible with beam width 68 - 115mm, the width is adjustable to the beam profile.
Suitable for IPE, IPN, HEA, HEB
Net travel length trolley mm 3000
Rotation angle ° 270
Lifting height mm 2500
Wireless Do not possess the feature
Weight kg 560.00
Dimensions (l x b x h) mm 2.5x1.1x2.5
