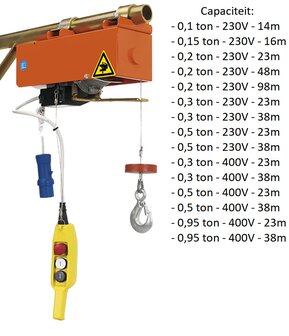

Single speed electric winch

Single speed electric winch
Permanently lubricated transmission, ensures smooth and quiet operation, suitable for lifting and pulling work, suitable for a wide range of industrial applications, high duty cycle, supplied ready to use with control switch, power cable and steel cable with hook, complies with the Machinery Directive 2006/ 42/EC. Supplied with test certificate, CE declaration of conformity and instructions for use.
Application - Lifting winch
Voltage - 230V / 50Hz / 1Ph, 400V / 50Hz / 3Ph
Lifting speed - Single speed
Cable - Steel cable 1960 N/mm²
Control cable - Standard ≈1 meter
Power cable - ≈1 meter with plug
Housing protection - IP 55 (100-200kg IP 44)
Control protection - IP 65
Classification - M5/2m (ISO/FEM)
Duty cycle / Starts per hour - 50% / 240
Insulation class - F
Operating temperature -10°C - +40°C
Load type - For goods only, not suitable for lifting persons
Switch - 230/400V switch with emergency stop
Nuisance protection - Without nuisance protection
Brake - Mechanical brake, achieves immediate braking effect and holds the load firmly even in case of power failure
Limit switch - Mechanical top limit switch
Capacity - 0.1 tons
Voltage - 230V
Lifting height - 14m
Max. lifting speed m/min - 15
Steel wire m x diameter mm - 16 x 4
Energy consumption - 0.3kw
Weight - 15kg
Capacity - 0.15 tons
Voltage - 230V
Lifting height - 16m
Max. lifting speed m/min - 21
Steel wire m x diameter mm - 18 x 4
Energy consumption - 0.65kw
Weight - 22kg
Capacity - 0.2 tons
Voltage - 230V
Lifting height - 23m
Max. lifting speed m/min - 25
Steel wire m x diameter mm - 25 x 5
Energy consumption - 0.75kw
Weight - 37kg
Capacity - 0.2 tons
Voltage - 230V
Lifting height - 48m
Max. lifting speed m/min - 38
Steel wire m x diameter mm - 50 x 5
Energy consumption - 1.45kw
Weight - 43kg
Capacity - 0.2 tons
Voltage - 230V
Lifting height - 98m
Max. lifting speed m/min - 38
Steel wire m x diameter mm - 100 x 5
Energy consumption - 1.45kw
Weight - 50kg
Capacity - 0.3 tons
Voltage - 230V
Lifting height - 23m
Max. lifting speed m/min - 23
Steel wire m x diameter mm - 25 x 6
Energy consumption - 1.45kw
Weight - 47kg
Capacity - 0.3 tons
Voltage - 230V
Lifting height - 38m
Max. lifting speed m/min - 23
Steel wire m x diameter mm - 40 x 6
Energy consumption - 1.45kw
Weight - 50kg
Capacity - 0.5 tons
Voltage - 230V
Lifting height - 23m
Max. lifting speed m/min - 16
Steel wire m x diameter mm - 25 x 7
Energy consumption - 2.2kw
Weight - 64kg
Capacity - 0.5 tons
Voltage - 230V
Lifting height - 38m
Max. lifting speed m/min - 16
Steel wire m x diameter mm - 40 x 7
Energy consumption - 2.2kw
Weight - 68kg
Capacity - 0.3 tons
Voltage - 400V
Lifting height - 23m
Max. lifting speed m/min - 23
Steel wire m x diameter mm - 25 x 6
Energy consumption - 1.85kw
Weight - 47kg
Capacity - 0.3 tons
Voltage - 400V
Lifting height - 38m
Max. lifting speed m/min - 23
Steel wire m x diameter mm - 40 x 6
Energy consumption - 1.85kw
Weight - 50kg
Capacity - 0.5 tons
Voltage - 400V
Lifting height - 23m
Max. lifting speed m/min - 22
Steel wire m x diameter mm - 25 x 7
Energy consumption - 2.2kw
Weight - 64kg
Capacity - 0.5 tons
Voltage - 400V
Lifting height - 38m
Max. lifting speed m/min - 22
Steel wire m x diameter mm - 40 x 7
Energy consumption - 2.2kw
Weight - 68kg
Capacity - 0.95 tons
Voltage - 400V
Lifting height - 23m
Max. lifting speed m/min - 12
Steel wire m x diameter mm - 25 x 2 x 7
Energy consumption - 2.2kw
Weight - 75kg
