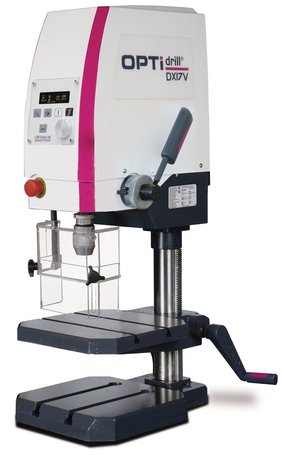

Table drilling machine vario diameter 16 mm 1x230V

Table drilling machine vario diameter 16 mm 1x230V
Table drill with thread cutting device and infinitely adjustable speed control with new, innovative user controls.
Advantages:
Innovative control panel with different languages (DE-EN-FR-RUS):
Mode with tapping device
LED illumination
Variable speed control, Siemens frequency converter SINAMICS V20
Digital parts counter
Intake Fixed B16
Suitable for:
Repair services (such as clock repairer), schools, training centers, labs, etc.
Features:
Best power transmission by Aluminum pulleys
Drill spindle with precision ball bearings
The Optimum DX17V independently sets the optimum speed for the desired
tool:
      - Input of drilling diameter
      - Entry of material
      - In two modes: drilling or tapping
      - Digital datum
Acoustic signal when the desired drilling depth is reached
Reduced speed control in tap mode

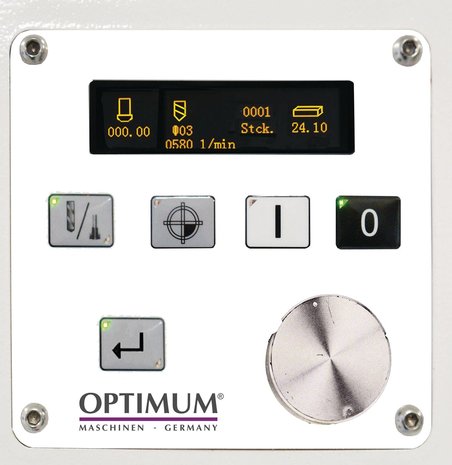

Soft-key panel with high-contrast display
Control of the 4 key functions by means of 4 buttons and potentiometer
LED lighting integrated in the drill chuck left / right, no unpleasant shadows
Large speed range
Siemens frequency converter SINAMICS V20
Large intermediate table, which is moved by means of a lever over a toothed bar.
Adjustable main switch
Solid, large base plate with T-slots.
Safeguards:
User-friendly control buttons with separate start and stop pushbuttons and separate emergency stop
Zero load voltage.
Solid drill shield double window, equipped with safety switch
Supplied with:
Optimum quick-clamping drill head from 0 - 13 mm, B16
English manual, inscriptions, CE-mark, and CE-declaration according to Machine directive 2006/42/CE, and EMC directive 2014/30/EU
DX 17V: Drill (frequency inverter) complying with standard DIN EN 55011: Class A
Voltage V 1x230
Power kW 1
Frequency Hz 50
Drilling cap. in steel S235JR mm 16
Drilling capacity in continuous use S235JR mm 13
Thread cutting capacity in steel S235JR M 8
Spindle mounting B16
Number of speeds Electron. adjustable
Spindle speed min-1 50-4000
Drilling depth mm 60
Unloading mm 235
Column diameter mm 60
Table dimensions (w x d) mm 290x290
T-slots size/number/distance mm 10/2/100
Distance spindle-table mm 375
Distance spindle-foot mm 385
Dimensions foot (W x D) mm 290x280
Weight kg 72,00
Dimensions (l x w x h) mm 475x424x910
