Trolley 1 ton

Trolley 1 ton Manual trolley 1 ton for chain hoists and cable hoists. Characteristics: • Capacity 1 ton Manual model without brake Eye with diameter 52mm Compatible with beam width 68...

Item number

: T2g-TV 07585910107

€ 104,95 *

€ 93,83 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

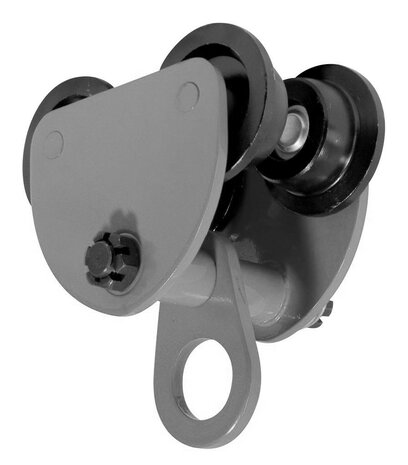

Trolley 1 ton
Manual trolley 1 ton for chain hoists and cable hoists.
Characteristics:
• Capacity 1 ton
Manual model without brake
Eye with diameter 52mm
Compatible with beam width 68 – 115 mm, the width is adjustable to the beam profile.
Suitable for IPE, IPN, HEA, HEB, ...
wheel diameter 63/90
Optional taps:
Gantry crane 1 ton (729840060). Suitable for lifting pallets, forklifts, near machines, etc.
Portal crane 1 ton extra high and wide (729840056). Suitable for lifting on trailers, vans, trucks
Manual column jib crane 1 ton (729840156). for permanent installation near workstation, loading and unloading zone, on floors, etc
Nominal capacity    t    1
Min. radius in case of curved rail    m    1
Wheel diameter    mm    63

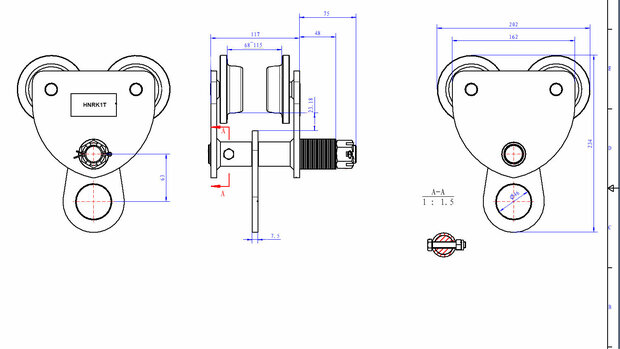

Dimensions
D    mm    133
Beam width (M)    mm    68-115
Weight    kg    8.00
Dimensions (l x b x h)    mm    220x204x230
